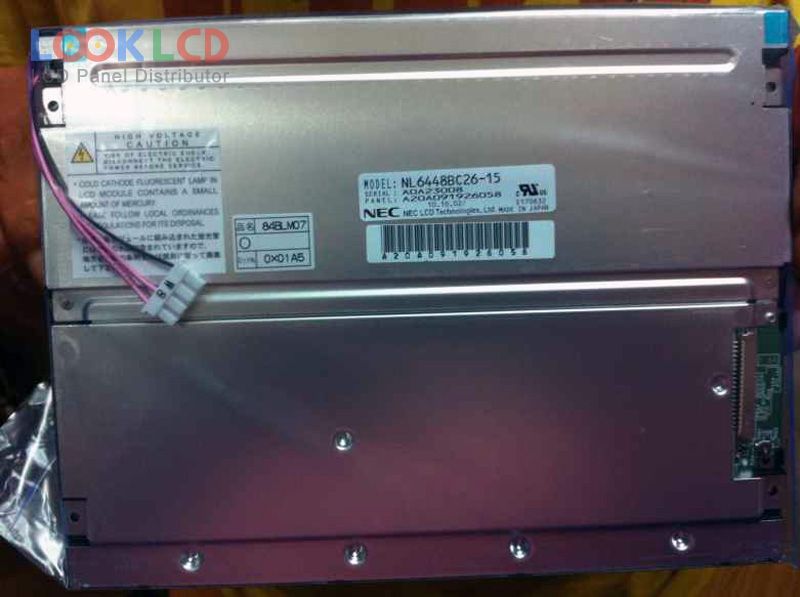

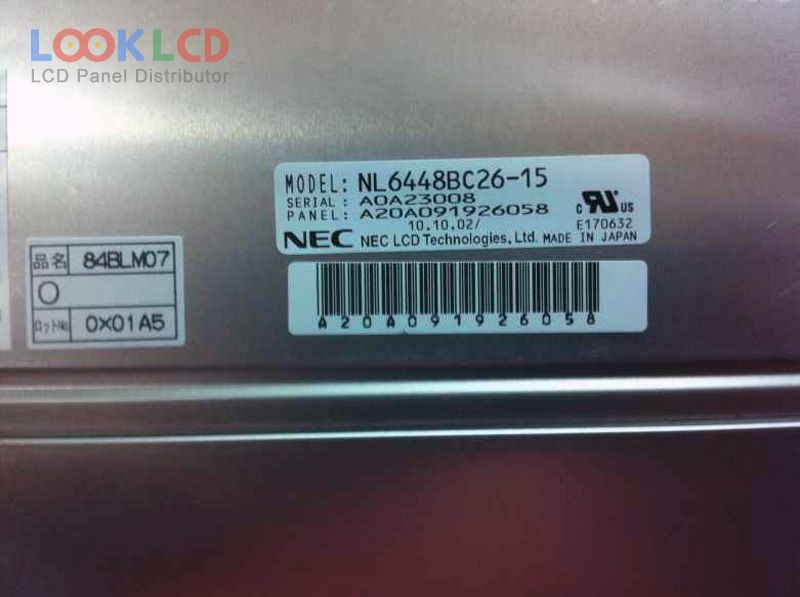

| Nombor Bahagian | NL6448BC26-15 |
| Jenama | NLT |
| Saiz | 8.4 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 600:1 |
| Warna | 262K/16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | NEC |
| model panel | NL6448BC26-15 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 170.88×128.16 mm |
| garis besar | 200×152 mm |
| permukaan | Clear, Hard coating (3H) |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| masa tindak balas | 6/19 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
