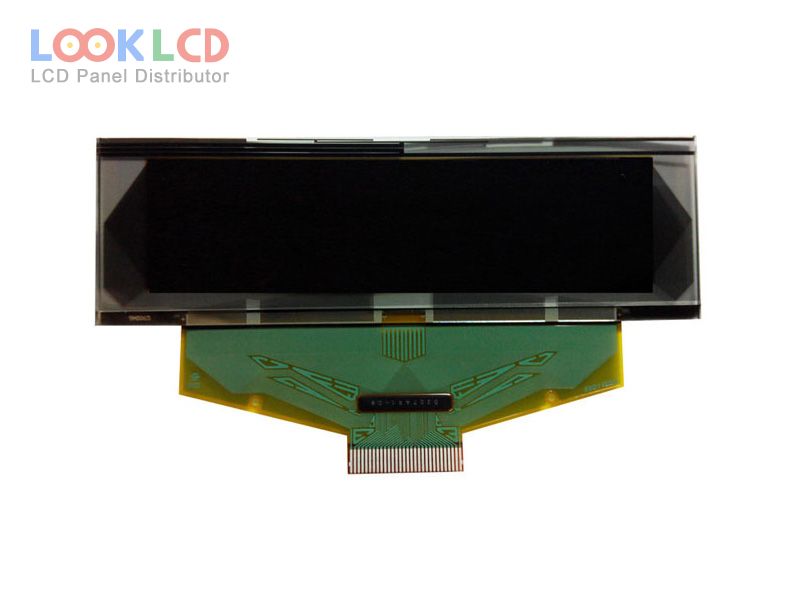

OEL9M0065-W-E

OEL9M0065-W-E
OEL9M0065-W-E thumb
Jenama
Other
Saiz
2.7
Permohonan
IA
Resolusi
256×64
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Grayscale(W)
Lampu latar
self
Antara muka
CPU/SPI
In Stock
15700
Spesifikasi

Nombor Bahagian OEL9M0065-W-E
JenamaOther
Saiz2.7
PermohonanIA
Resolusi256×64
KomposisiOLED
Kecerahan
CR10000:1
WarnaGrayscale(W)
Lampu latarself
Antara mukaCPU/SPI
jenama panelTRULY
model panelOEL9M0065-W-E 1 Compatible model
jenis panel PM-OLED , OLED
saiz panel2.7 inch
resolusi256×64
kawasan aktif66.53×16.61 mm
garis besar82×25.5×1.6 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanGrayscale(W) (4-bit)
sudut pandangan80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
kekerapan100Hz
ic pemanduCOF Built-in SSD1322UR1
antara muka isyarat8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins
permohonanIA
