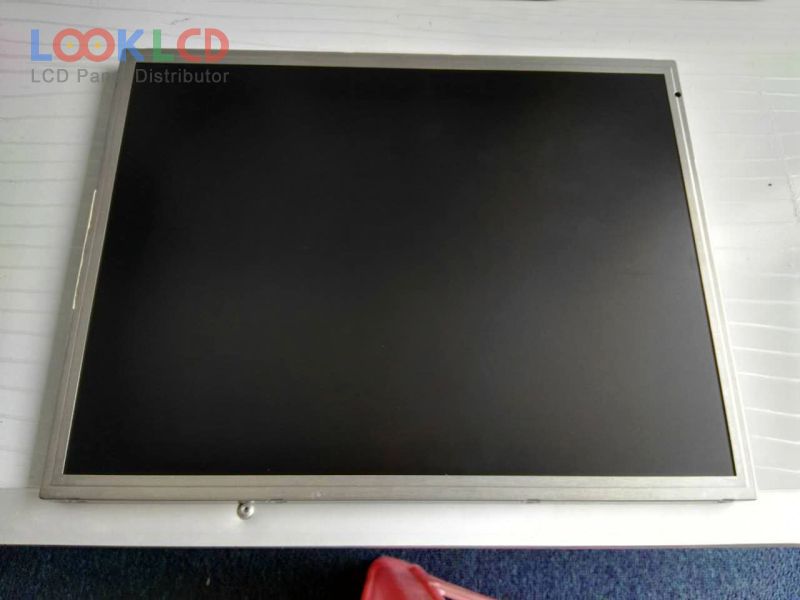

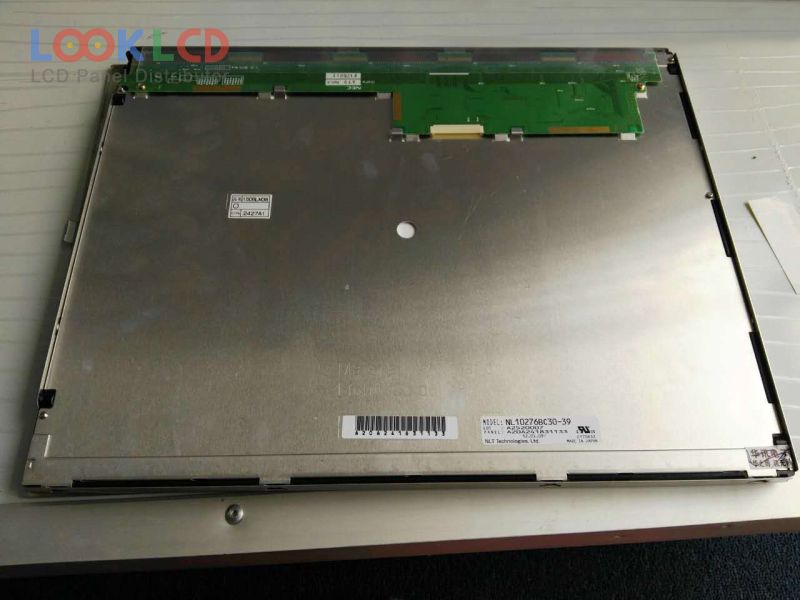

| Nombor Bahagian | NL10276BC30-39 |
| Jenama | NLT |
| Saiz | 15.0 |
| Permohonan | IA |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 270 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | NEC |
| model panel | NL10276BC30-39 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.0 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | UA-SFT, Normally Black, Transmissive |
| kawasan aktif | 304.128×228.096 mm |
| garis besar | 326.5×253.5×12.2 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 270 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | 14/11 (Typ.)(Tr/Td) |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6 stringsWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
