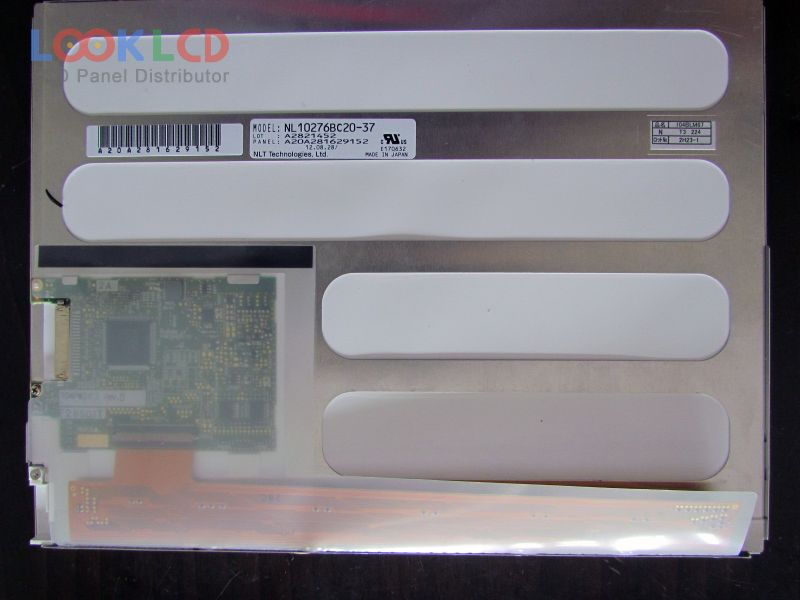

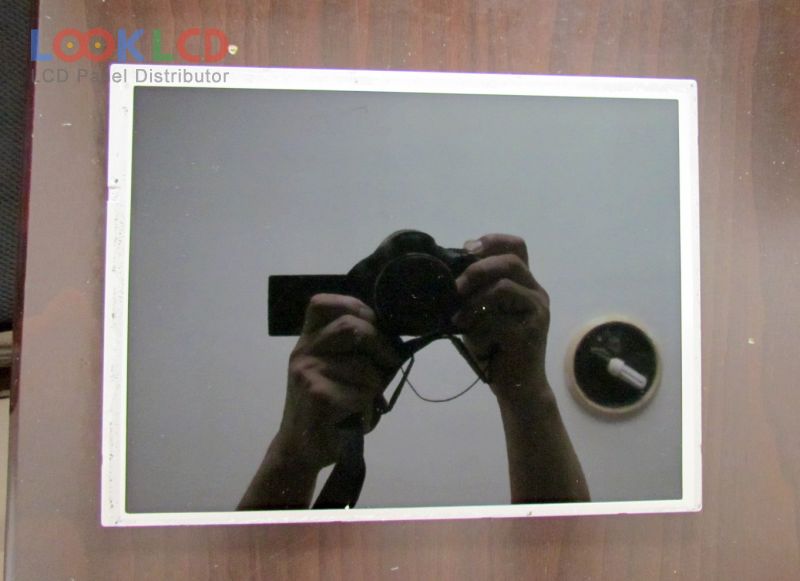

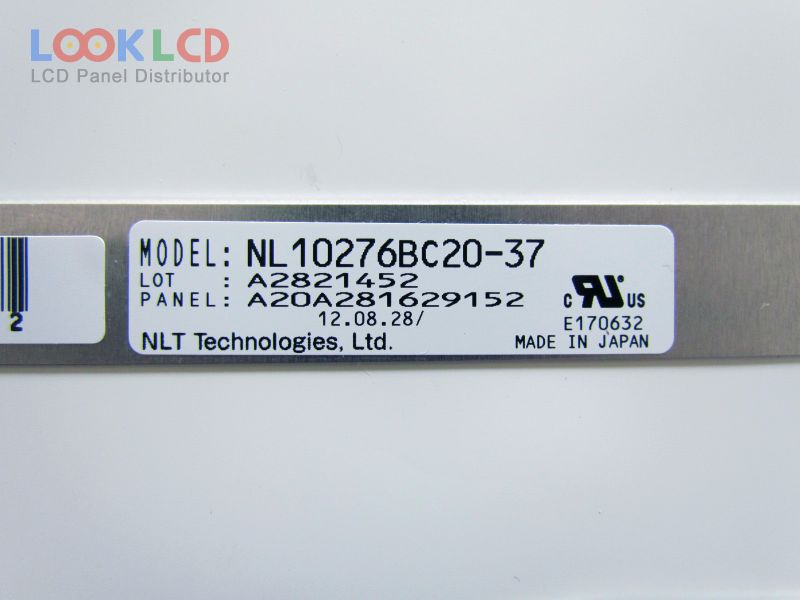

| Nombor Bahagian | NL10276BC20-37 |
| Jenama | NLT |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 150 |
| CR | 400:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | NLT |
| model panel | NL10276BC20-37 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 210.4×157.8 mm |
| garis besar | 231.2×174.6×5.8 mm |
| permukaan | Clear |
| kecerahan | 150 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| masa tindak balas | 3/15 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/40/20 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6/8-bit) |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
