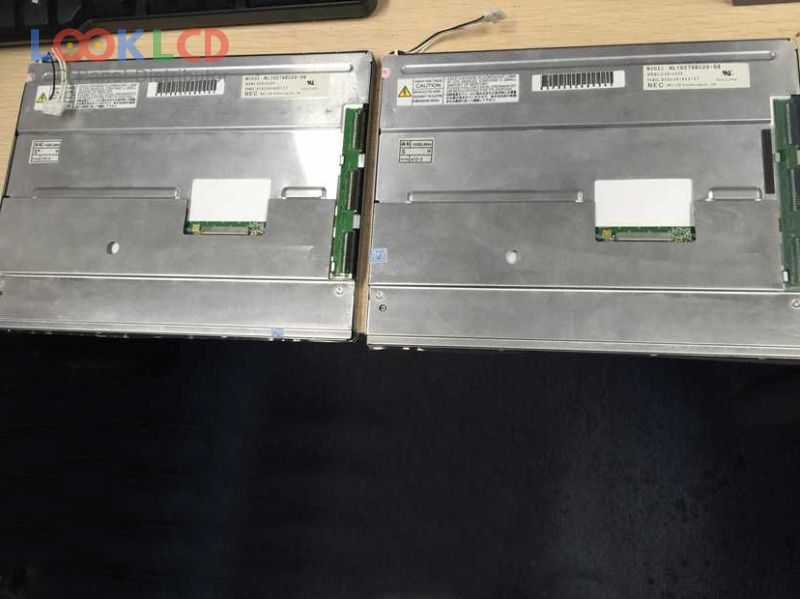

| Nombor Bahagian | NL10276BC20-08 |
| Jenama | NLT |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | NEC |
| model panel | NL10276BC20-08 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | SA-SFT, Normally Black, Transmissive |
| kawasan aktif | 210.4×157.8 mm |
| garis besar | 227×174.5 mm |
| permukaan | Clear, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193140% |
| masa tindak balas | 13/12 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
