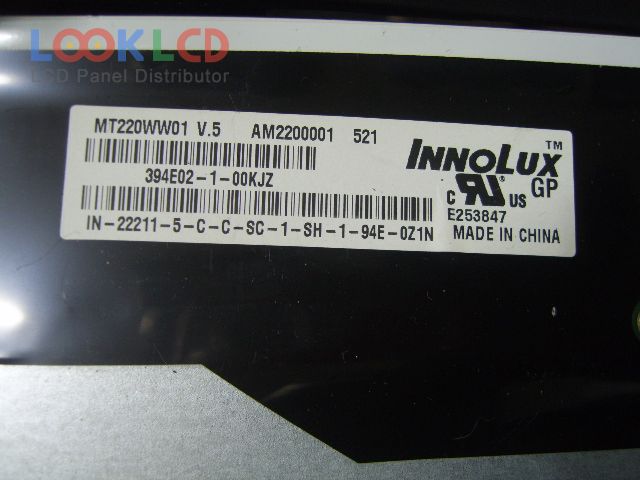

| Nombor Bahagian | MT220WW01 V.5 |
| Jenama | Innolux |
| Saiz | 22.0 |
| Permohonan | DMPC |
| Resolusi | 1680×1050 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | INNOLUX |
| model panel | MT220WW01 V.5 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 22.0 inch |
| resolusi | 1680(RGB)×1050 , WSXGA+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 473.76×296.1 mm |
| garis besar | 493.7×320.1×16.7 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193192% |
| masa tindak balas | 1.5/3.5 (Typ.)(Tr/Td) |
| sudut pandangan | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (2 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
