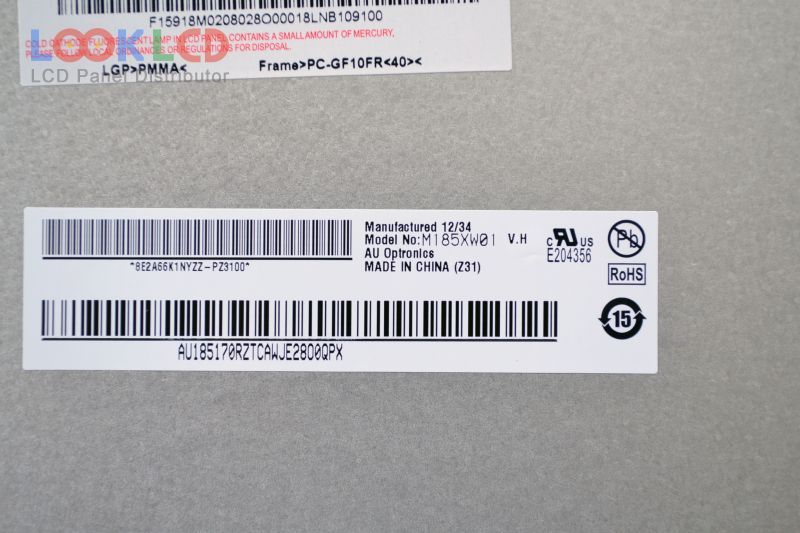

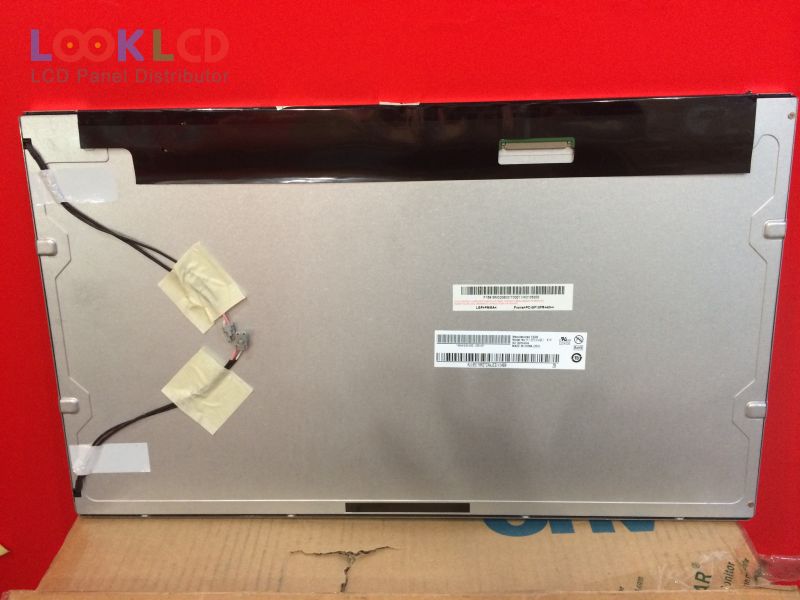

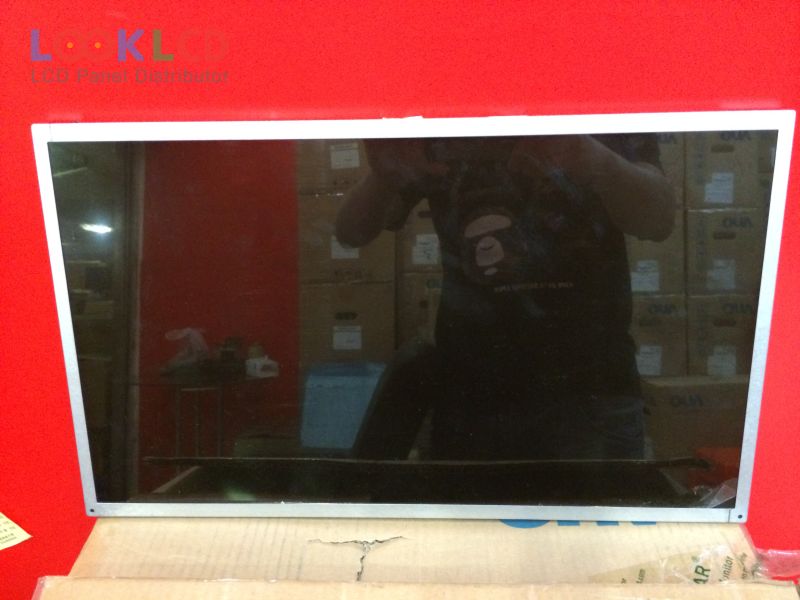

| Nombor Bahagian | M185XW01 VH |
| Jenama | AUO |
| Saiz | 18.5 |
| Permohonan | DMPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | M185XW01 VH |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 18.5 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 409.8×230.4 mm |
| garis besar | 430.37×254.6×11 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193165% |
| masa tindak balas | 3.6/1.4 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
