LG Display LM240WU3-TLD1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

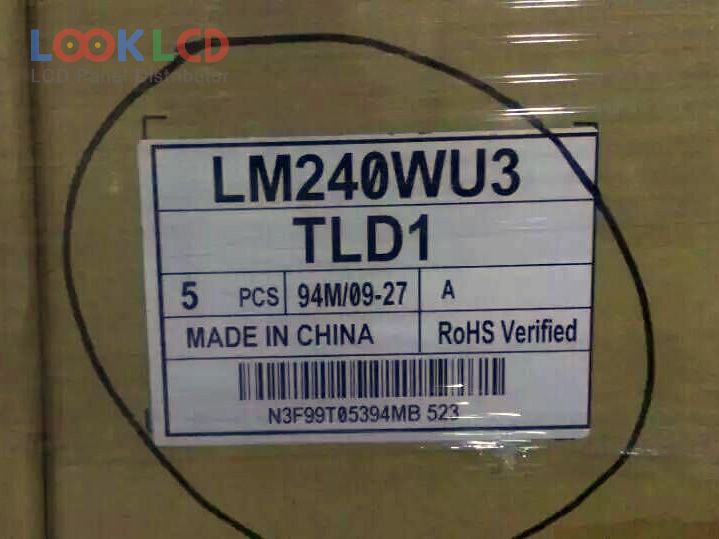

LM240WU3-TLD1

LM240WU3-TLD1
LM240WU3-TLD1 thumb
Jenama
LG Display
Saiz
24.0
Permohonan
DMPC
Resolusi
1920×1200
Komposisi
LCM
Kecerahan
400
CR
1000:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
200
Spesifikasi

Nombor Bahagian LM240WU3-TLD1
JenamaLG Display
Saiz24.0
PermohonanDMPC
Resolusi1920×1200
KomposisiLCM
Kecerahan400
CR1000:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelLG Display
model panelLM240WU3-TLD1
jenis panel a-Si TFT-LCD , LCM
saiz panel24.0 inch
resolusi1920(RGB)×1200 , WUXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif518.4×324 mm
garis besar546.4×352 mm
permukaanAntiglare, Hard coating (3H)
kecerahan400 cd/m² (Typ.)
nisbah kontras1000:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193192%
masa tindak balas5 (Typ.)(Tr+Td)
sudut pandangan85/85/75/85 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu6 pcsCCFLWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
Model Keluarga
LM240WU2-SLB4 LG Display 24.0 1920×1200
LM240WU3-TLD1 LG Display 24.0 1920×1200
LM240WU5-SLA4 LG Display 24.0 1920×1200
LM240WU6-SDA1 LG Display 24.0 1920×1200
LM240WU7-SLA3 LG Display 24.0 1920×1200
LM240WU7-SLB1 LG Display 24.0 1920×1200
LM240WU8-SLA2 LG Display 24.0 1920×1200
LM240WU8-SLD1 LG Display 24.0 1920×1200
LM240WU8-SLD2 LG Display 24.0 1920×1200
LM240WU9-SLA1 LG Display 24.0 1920×1200
