AUO M240HW01 V1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

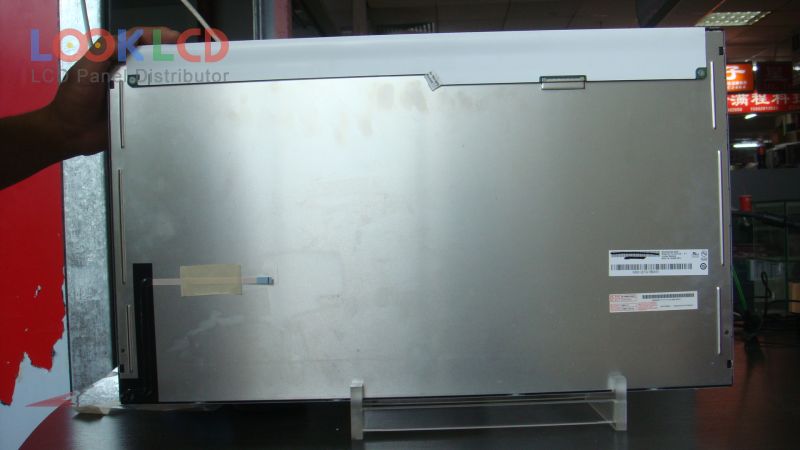

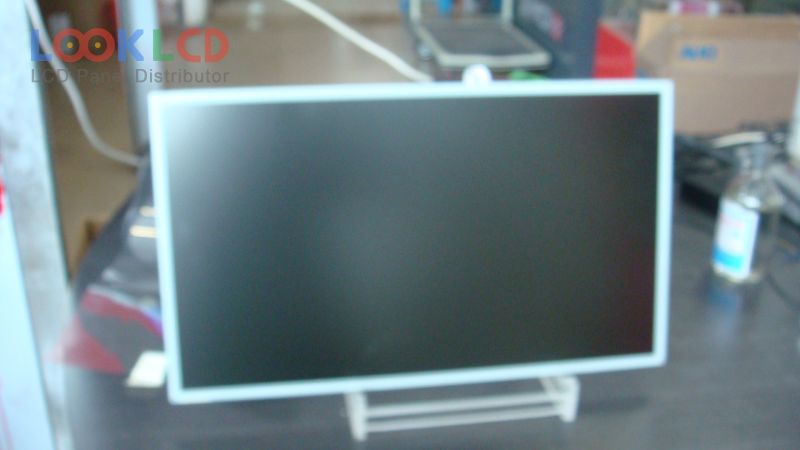

M240HW01 V1

M240HW01 V1
M240HW01 V1
M240HW01 V1 thumb M240HW01 V1 thumb
Jenama
AUO
Saiz
24.0
Permohonan
DMPC
Resolusi
1920×1080
Komposisi
LCM
Kecerahan
250
CR
1000:1
Warna
16.7M
Lampu latar
WLED
Antara muka
LVDS
In Stock
14477
Spesifikasi

Nombor Bahagian M240HW01 V1
JenamaAUO
Saiz24.0
PermohonanDMPC
Resolusi1920×1080
KomposisiLCM
Kecerahan250
CR1000:1
Warna16.7M
Lampu latarWLED
Antara mukaLVDS
jenama panelAUO
model panelM240HW01 V1
jenis panel a-Si TFT-LCD , LCM
saiz panel24.0 inch
resolusi1920(RGB)×1080 , FHD
mod paparanTN, Normally White, Transmissive
kawasan aktif531.36×298.89 mm
garis besar556×323.2×15.05 mm
permukaanAntiglare, Hard coating (3H)
kecerahan250 cd/m² (Typ.)
nisbah kontras1000:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193172%
masa tindak balas3.4/1.6 (Typ.)(Tr/Td); 2 (Typ.)(G to G)
sudut pandangan85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampuWLEDWithout Driver
antara muka isyaratLVDS (2 ch, 8-bit), 30 pins
voltan masukan5.0V (Typ.)
permohonanDMPC
Model Keluarga
M240HTD01.0 AUO 24.0 1920×1080
M240HTN01.2 AUO 24.0 1920×1080
M240HVN01.0 AUO 24.0 1920×1080
M240HVN02.0 AUO 24.0 1920×1080
M240HW01 V0 AUO 24.0 1920×1080
M240HW01 V2 AUO 24.0 1920×1080
M240HW01 VB AUO 24.0 1920×1080
M240HW02 V1 AUO 24.0 1920×1080
M240HW02 V5 AUO 24.0 1920×1080
M240HW02 V6 AUO 24.0 1920×1080
