LG Display LM185WH1-TLD1 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

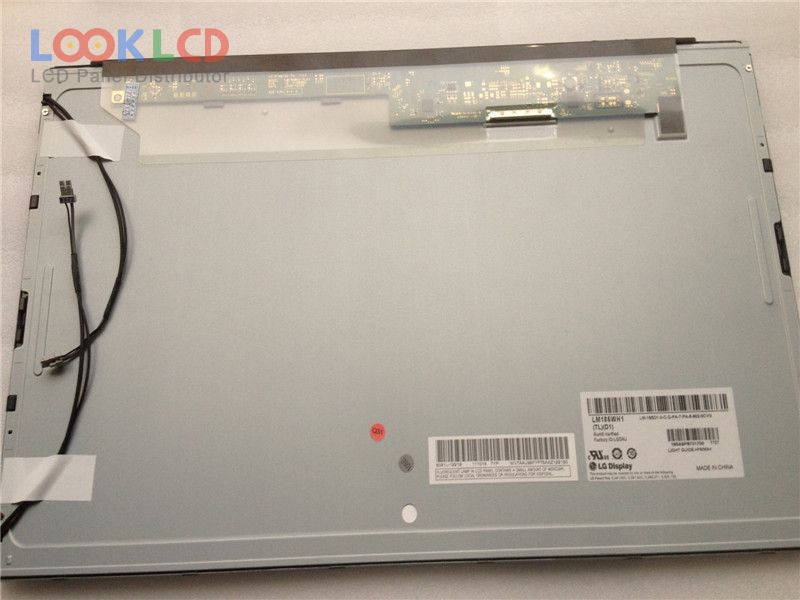

LM185WH1-TLD1

LM185WH1-TLD1
LM185WH1-TLD1 thumb
Jenama
LG Display
Saiz
18.5
Permohonan
DMPC
Resolusi
1366×768
Komposisi
LCM
Kecerahan
250
CR
1000:1
Warna
16.7M
Lampu latar
CCFL
Antara muka
LVDS
In Stock
1610
Spesifikasi

Nombor Bahagian LM185WH1-TLD1
JenamaLG Display
Saiz18.5
PermohonanDMPC
Resolusi1366×768
KomposisiLCM
Kecerahan250
CR1000:1
Warna16.7M
Lampu latarCCFL
Antara mukaLVDS
jenama panelLG Display
model panelLM185WH1-TLD1
jenis panel a-Si TFT-LCD , LCM
saiz panel18.5 inch
resolusi1366(RGB)×768 , WXGA
mod paparanTN, Normally White, Transmissive
kawasan aktif409.8×230.4 mm
permukaan
kecerahan250 cd/m² (Typ.)
nisbah kontras1000:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193172%
masa tindak balas5 (Typ.)(Tr+Td)
sudut pandangan85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampuCCFL
antara muka isyaratLVDS (2 ch, 8-bit)
permohonanDMPC
Model Keluarga
LM185WH1-TLA1 LG Display 18.5 1366×768
LM185WH1-TLC5 LG Display 18.5 1366×768
LM185WH1-TLD1 LG Display 18.5 1366×768
LM185WH1-TLD3 LG Display 18.5 1366×768
LM185WH1-TLF1 LG Display 18.5 1366×768
LM185WH1-TLF4 LG Display 18.5 1366×768
LM185WH1-TLH1 LG Display 18.5 1366×768
LM185WH2-T2BB LG Display 18.5 1366×768
LM185WH2-TLD1 LG Display 18.5 1366×768
LM185WH2-TLE2 LG Display 18.5 1366×768
