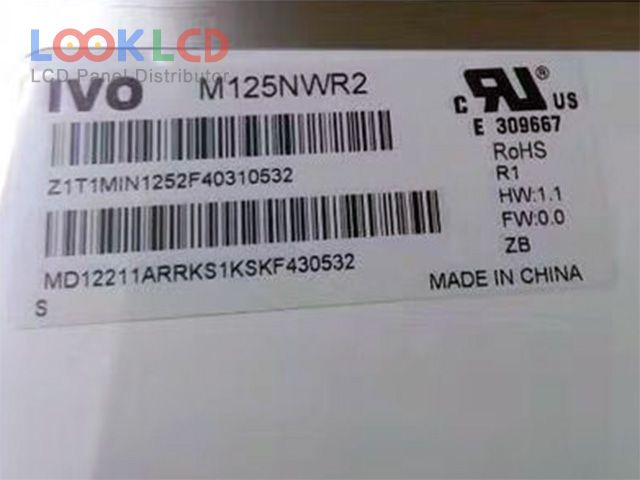

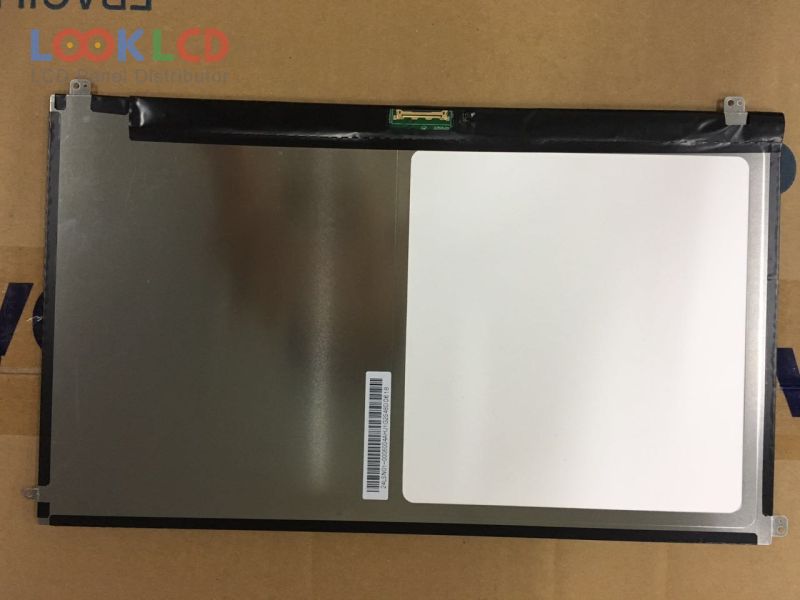

| Nombor Bahagian | M125NWR2 R1 |
| Jenama | IVO |
| Saiz | 12.5 |
| Permohonan | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | IVO |
| model panel | M125NWR2 R1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.5 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 275.59×154.94 mm |
| garis besar | 298.6×174.67×4.8 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 10S4PWLEDWithout Driver |
| antara muka isyarat | eDP (2 Lanes), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
