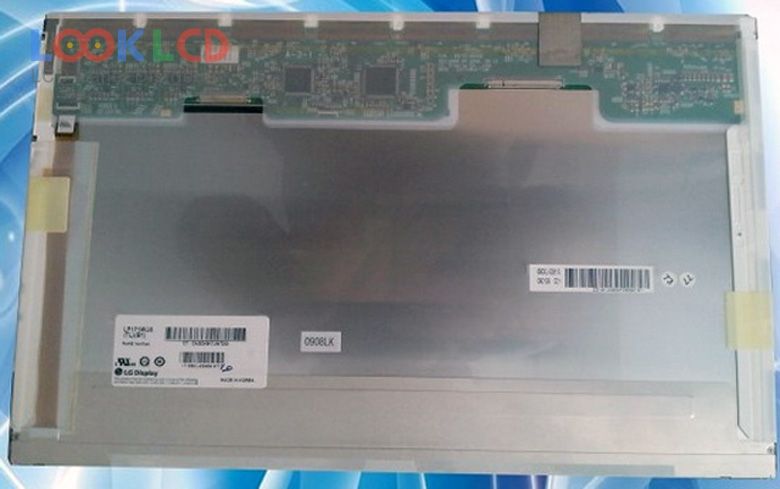

| Nombor Bahagian | LP171WU5-TLB1 |
| Jenama | LG Display |
| Saiz | 17.1 |
| Permohonan | NBPC |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | RGB LED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LP171WU5-TLB1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.1 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 367.2×229.5 mm |
| garis besar | 382.2×247.5×7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE1931110% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | RGB LEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (2 ch, 8-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
