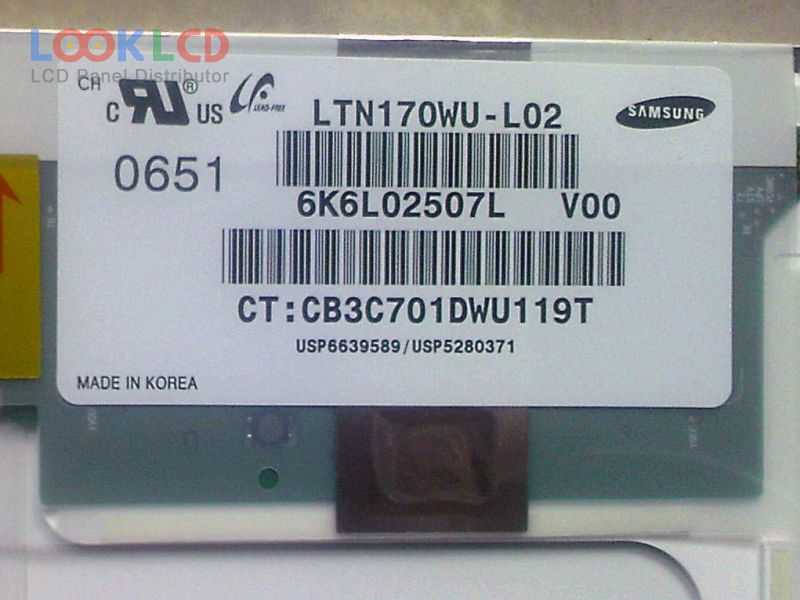

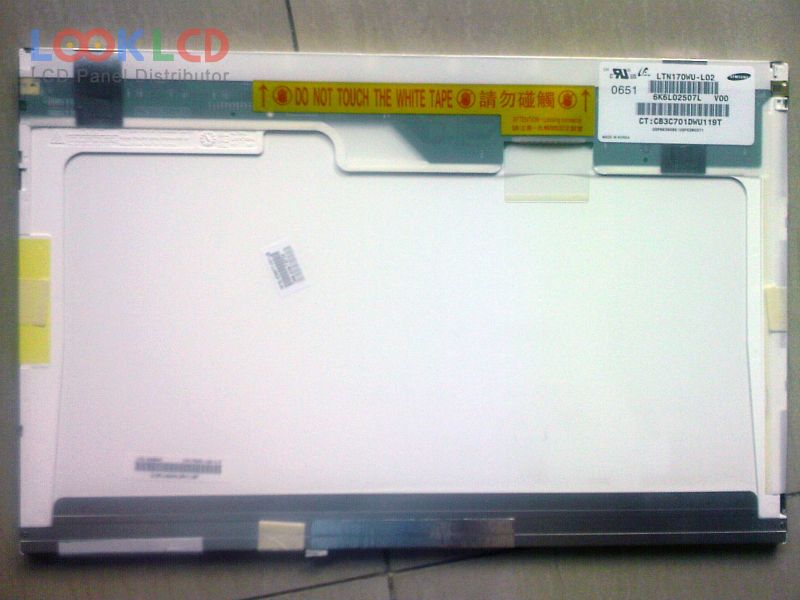

| Nombor Bahagian | LTN170WU-L02 |
| Jenama | Samsung |
| Saiz | 17.0 |
| Permohonan | NBPC |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 185 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN170WU-L02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.0 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 367.2×229.5 mm |
| garis besar | 382.2×244.5×7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (2H), Antireflection |
| kecerahan | 185 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Min.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 65/65/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (2 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
