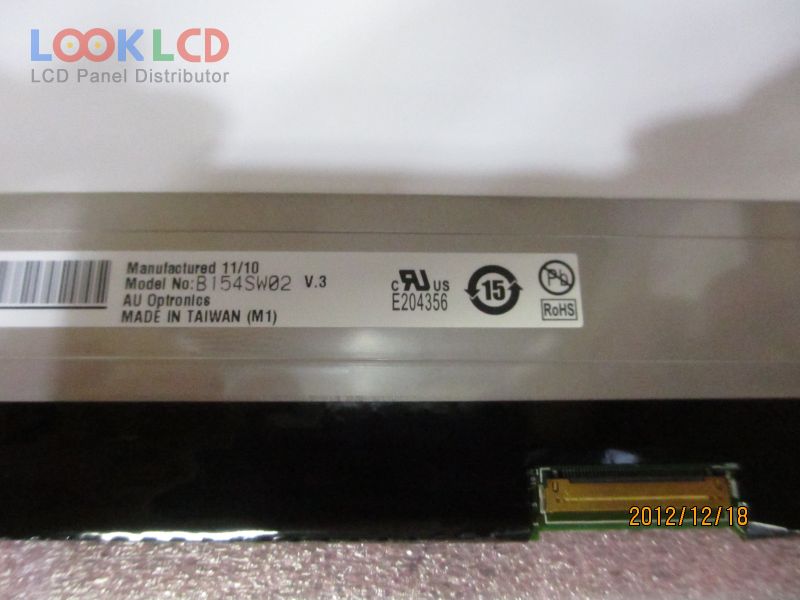

| Nombor Bahagian | B154SW02 V3 |
| Jenama | AUO |
| Saiz | 15.4 |
| Permohonan | NBPC |
| Resolusi | 1680×1050 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | AUO |
| model panel | B154SW02 V3 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.4 inch |
| resolusi | 1680(RGB)×1050 , WSXGA+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 331.38×207.11 mm |
| garis besar | 342.85×229.99×4.03 mm |
| gaya bentuk | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| permukaan | Antiglare, Hard coating (2H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193172% |
| masa tindak balas | 12/4 (Typ.)(Tr/Td) |
| sudut pandangan | 35/35/30/30 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6 stringsWLEDWithout Driver |
| antara muka isyarat | LVDS (2 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
