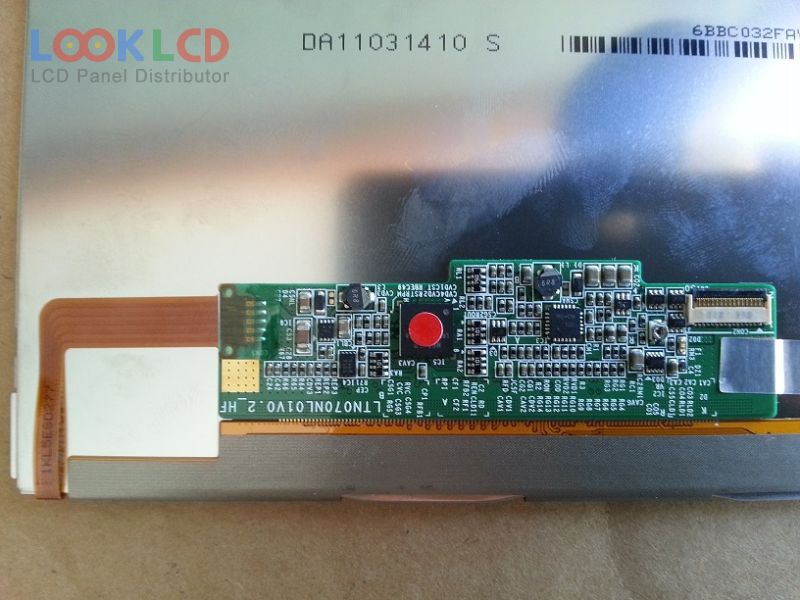

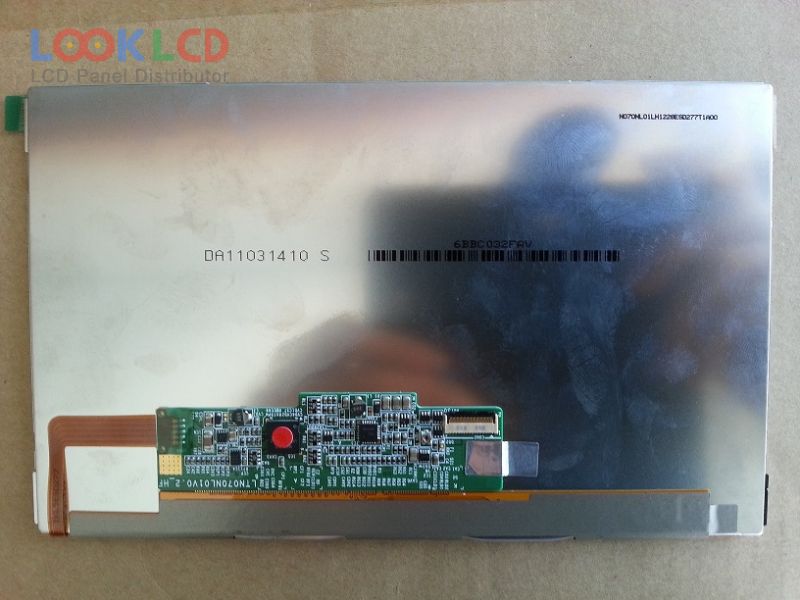

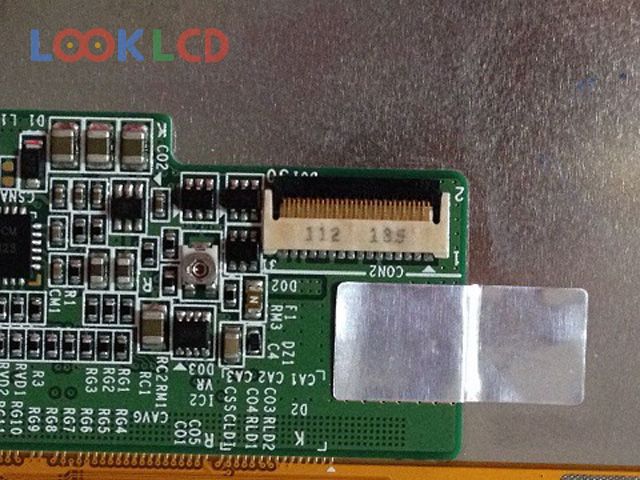

| Nombor Bahagian | LTN070NL01-801 |
| Jenama | Samsung |
| Saiz | 7.0 |
| Permohonan | PAD |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTN070NL01-801 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 153.6×90 mm |
| garis besar | 164.05×100.86 mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.2M (6-bit + FRC), CIE193150% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6S4PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 31 pins |
| voltan masukan | 3.7V (Typ.) |
| permohonan | PAD |
| 70WVW2A | SII | 7.0 | 800×480 |
| DLC0700EZG-T-2 | Other | 7.0 | 800×480 |
| DLC0700JBG-T-6 | Other | 7.0 | 1024×600 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| LTN070NL01 | Samsung | 7.0 | 1024×600 |
| LTN070NL01-801 | Samsung | 7.0 | 1024×600 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HSD100PXN1-A00 | HannStar | 10.0 | 1024×768 |
| HX104X01-210 | HYDIS | 10.4 | 1024×768 |
| LP094WX1-SLA1 | LG Display | 9.4 | 1280×800 |
| LP097QX1-SPC3 | LG Display | 9.7 | 2048×1536 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
