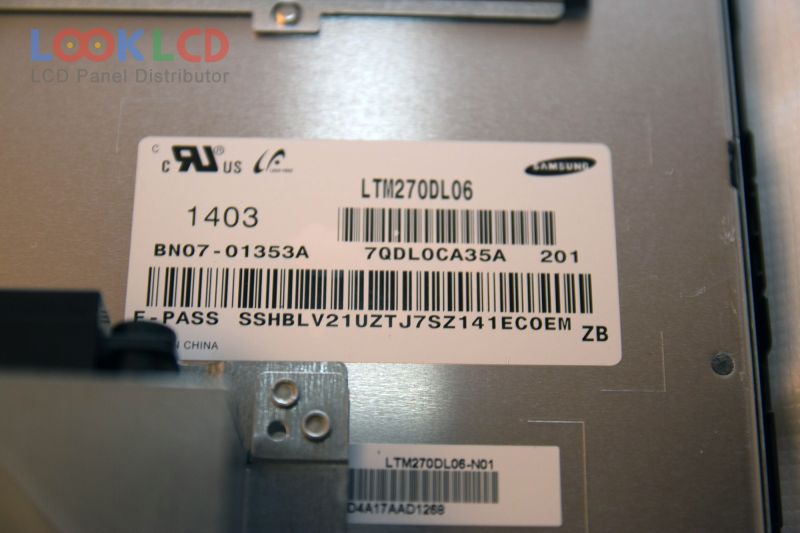

| Nombor Bahagian | LTM270DL06 |
| Jenama | Samsung |
| Saiz | 27.0 |
| Permohonan | DMPC |
| Resolusi | 2560×1440 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTM270DL06 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 27.0 inch |
| resolusi | 2560(RGB)×1440 , Quad-HD |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 596.736×335.664 mm |
| garis besar | 630×368.2×16.1 mm |
| permukaan | Antiglare (Haze 35%), Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (8-bit), sRGB |
| masa tindak balas | 12 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 16S4PWLEDWithout Driver |
| antara muka isyarat | LVDS (4 ch, 8-bit), 61 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
