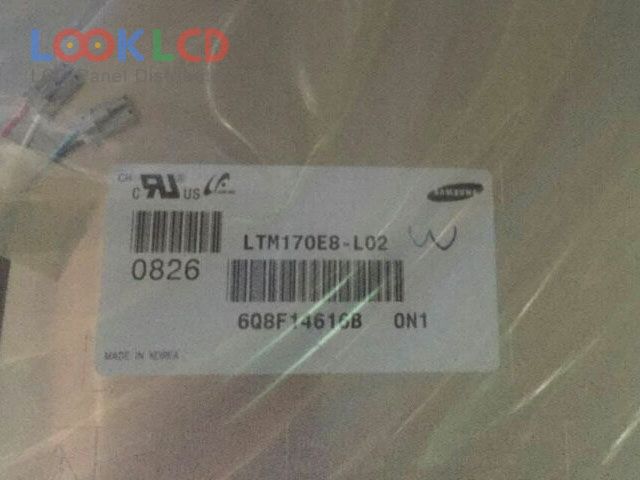

| Nombor Bahagian | LTM170E8-L02 |
| Jenama | Samsung |
| Saiz | 17.0 |
| Permohonan | DMPC |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTM170E8-L02 3 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mod paparan | PVA, Normally Black, Transmissive |
| kawasan aktif | 337.92×270.336 mm |
| garis besar | 354.9×290.3×13.3 mm |
| permukaan | Antiglare (Haze 44%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | 15/10 (Typ.)(Tr/Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (2 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
