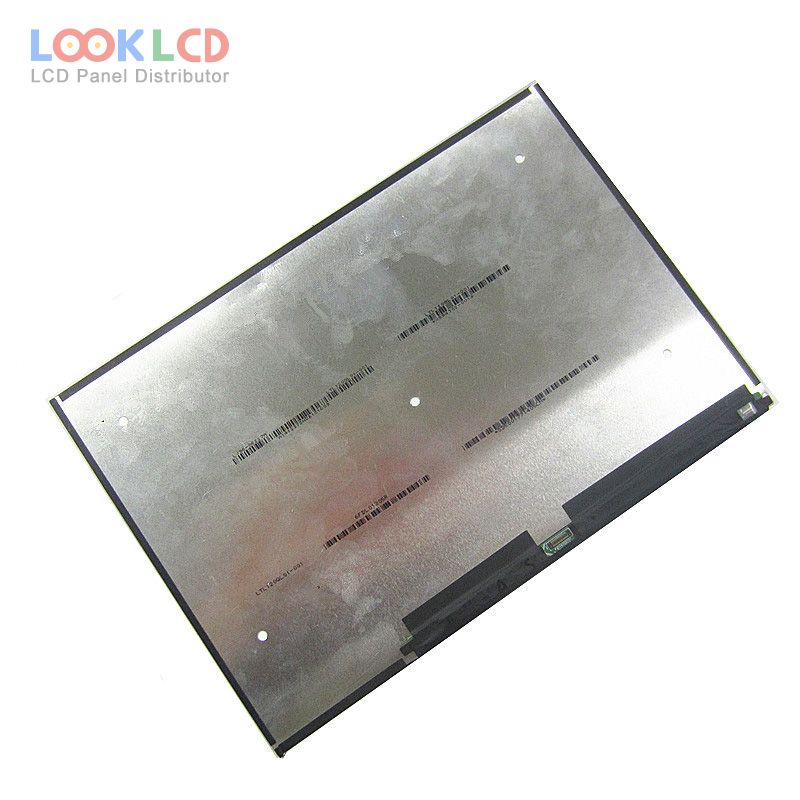

| Nombor Bahagian | LTL120QL01-001 |
| Jenama | Samsung |
| Saiz | 12.0 |
| Permohonan | PAD |
| Resolusi | 2160×1440 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | SAMSUNG |
| model panel | LTL120QL01-001 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.0 inch |
| resolusi | 2160(RGB)×1440 |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 254.016×169.344 mm |
| garis besar | 263.42×182.26×4.29 mm |
| permukaan | Glare (Haze 0%), Hard coating (2H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | 25/35 (Max.)(Tr/Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 9S6PWLEDEmbedded (LED Driver) |
| antara muka isyarat | eDP (4 Lanes), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
| AM-1024768RTNQW-00H | AMPIRE | 12.0 | 1024×768 |
| LTA120W1-T02 | Samsung | 12.0 | 800×480 |
| LTL120QL01-001 | Samsung | 12.0 | 2160×1440 |
| P120ZDG-BF2 | Innolux | 12.0 | 2160×1440 |
| TX31D50VM2BAA | KOE | 12.0 | 800×480 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| HJ070IA-01I | Innolux | 7.0 | 1024×600 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| LP079X01-SMA7 | LG Display | 7.9 | 768×1024 |
| LP101WH4-SLAA | LG Display | 10.1 | 1366×768 |
| LQ079L1SX02 | SHARP | 7.9 | 1536×2048 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| YX101GL-01A | SEBO | 10.1 | 1280×800 |
