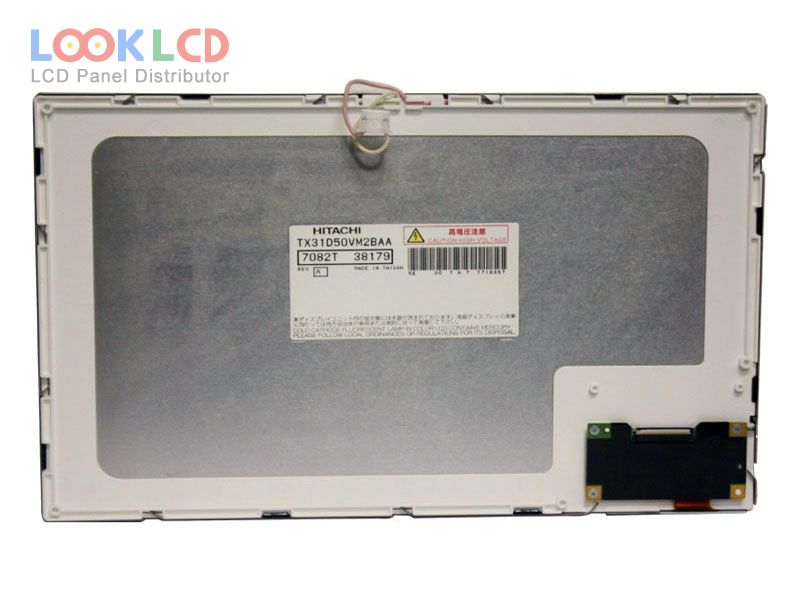

| Nombor Bahagian | TX31D50VM2BAA |
| Jenama | KOE |
| Saiz | 12.0 |
| Permohonan | DPF |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | HITACHI |
| model panel | TX31D50VM2BAA |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 261.6×156.96 mm |
| garis besar | 283×173.8 mm |
| permukaan | |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 350:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193170% |
| masa tindak balas | |
| sudut pandangan | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 1 pcsCCFL |
| antara muka isyarat | CMOS (1 ch, 6-bit) |
| voltan masukan | 3.3V (Typ.) |
| rohs: | |
| permohonan | DPF |
