| Nombor Bahagian | LSC550FN05 |
| Jenama | Samsung |
| Saiz | 55 |
| Permohonan | LCTV |
| Resolusi | 3840×2160 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 4000:1 |
| Warna | 1.07B |
| Lampu latar | No B/L |
| Antara muka | V-by-One |
| jenama panel | SAMSUNG |

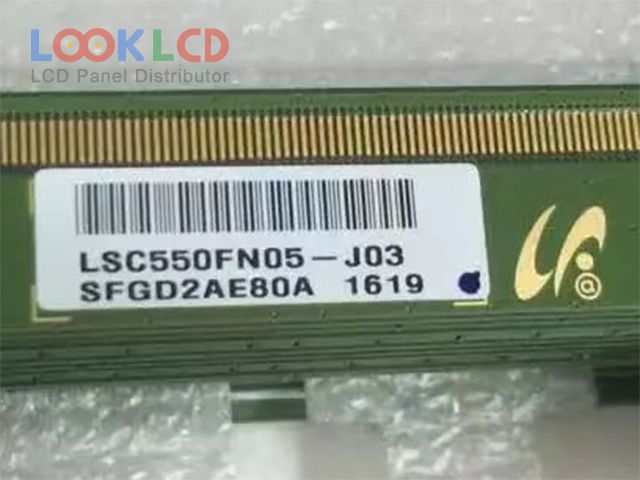

| model panel | LSC550FN05 |
| jenis panel | a-Si TFT-LCD , CELL |
| saiz panel | 55 inch |
| resolusi | 3840(RGB)×2160 , UHD |
| mod paparan | SVA, Normally Black, Transmissive |
| kawasan aktif | 1209.6×680.4 mm |
| garis besar | 1223.6×697.1 mm |
| permukaan | Antiglare (Haze 2.3%), Hard coating (2H) |
| kedalaman kaca | 0.50+0.50 mm |
| ketransmisian | 4.6% (Typ.)(with Polarizer) |
| nisbah kontras | 4000:1 (Typ.) |
| warna paparan | 1.07B (8-bit + Dithering), CIE193168% |
| masa tindak balas | 8 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| antara muka isyarat | V-by-One 8 lane, 51 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | LCTV |
