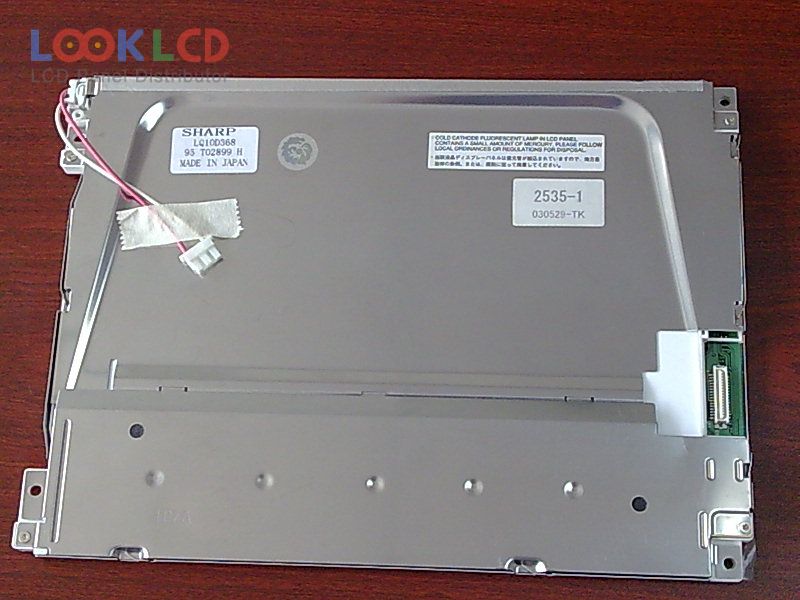

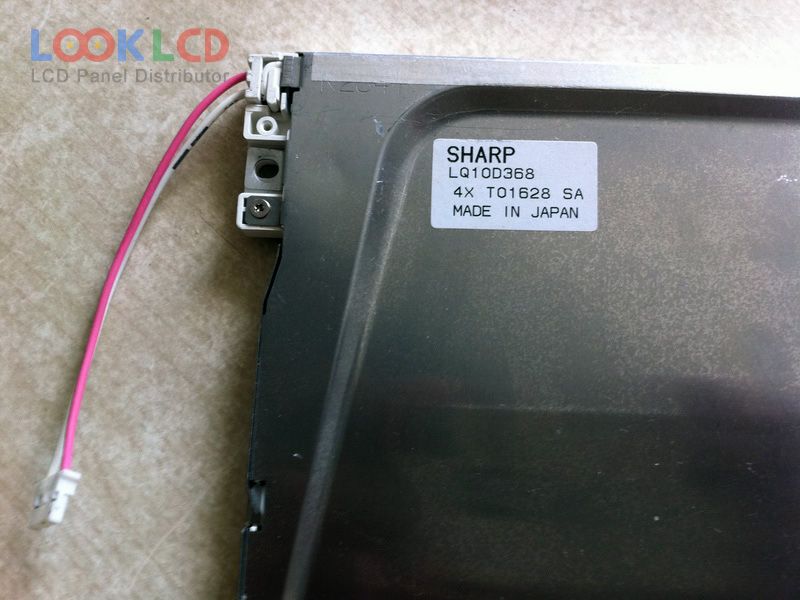

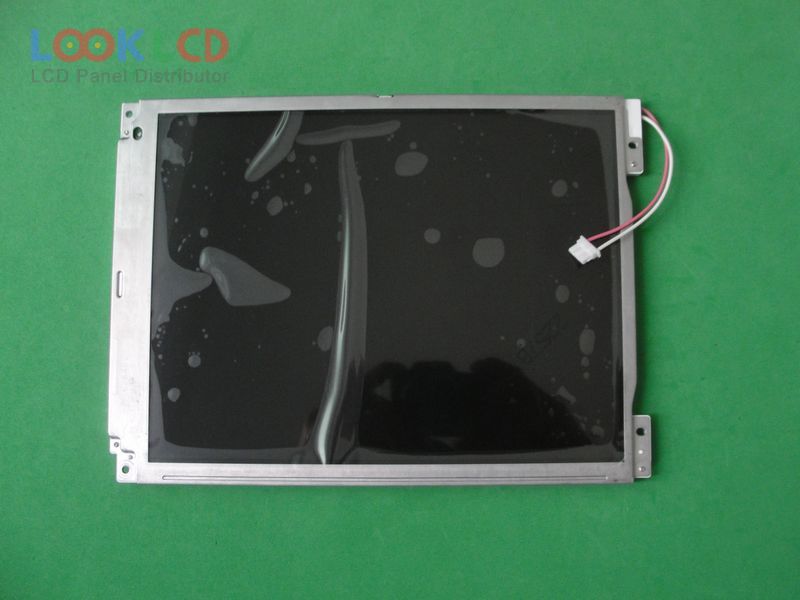

| Nombor Bahagian | LQ10D368 |
| Jenama | SHARP |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ10D368 2 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 640(RGB)×480 , VGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 211.2×158.4 mm |
| garis besar | 246.5×179.4×11 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 20/40 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 31 pins |
| voltan masukan | 3.3/5.0V (Typ.)(VCC) |
| permohonan | IA |
