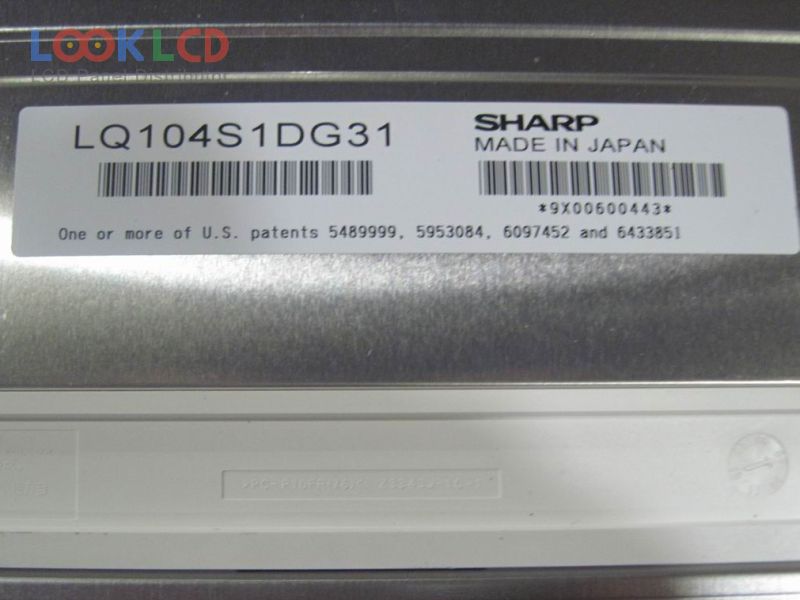

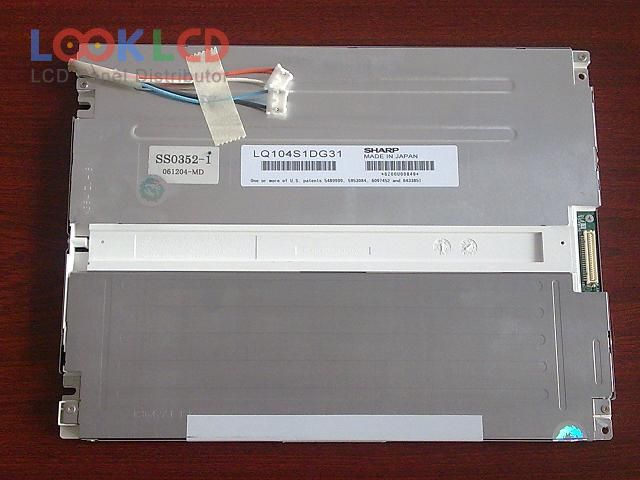

| Nombor Bahagian | LQ104S1DG31 |
| Jenama | SHARP |
| Saiz | 10.4 |
| Permohonan | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ104S1DG31 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.4 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 211.2×158.4 mm |
| garis besar | 243×183.8 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 300:1 (Min.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/25 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |

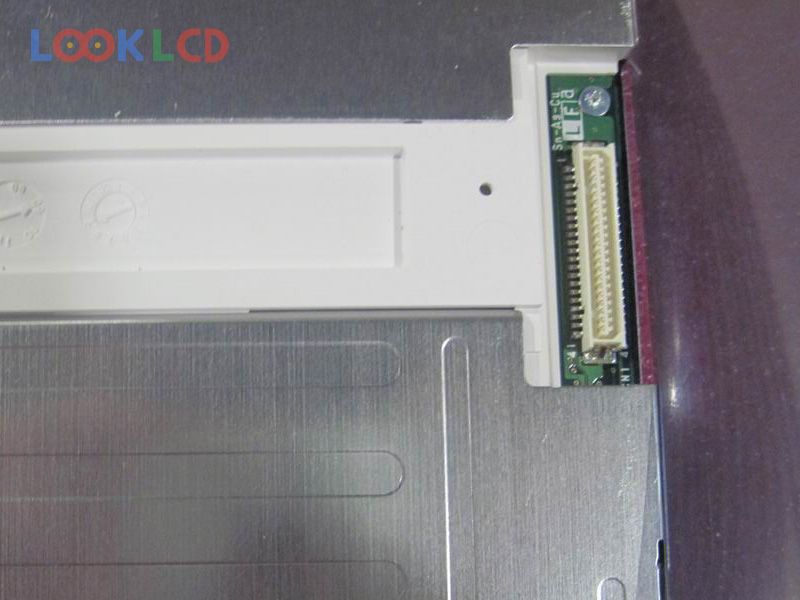

| antara muka isyarat | CMOS (1 ch, 6-bit), 41 pins |
| voltan masukan | 3.3/5.0V (Typ.)(VCC) |
| permohonan | IA |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104S1DG61 | SHARP | 10.4 | 800×600 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DC31 | SHARP | 10.4 | 640×480 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| LQ104V1DG62 | SHARP | 10.4 | 640×480 |
| LQ104V1DG81 | SHARP | 10.4 | 640×480 |
| LQ104V1DW01 | SHARP | 10.4 | 640×480 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| AA10SA6C-ADDD | Mitsubishi | 10.4 | 800×600 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| G057VTN01.1 | AUO | 5.7 | 640×480 |
| G090VTN02.0 | AUO | 9.0 | 800×480 |
| G104X1-L03 | Innolux | 10.4 | 1024×768 |
| LQ10D368 | SHARP | 10.4 | 640×480 |
| M150MNN1 R1 | IVO | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| NL8060BC31-27D | NLT | 12.1 | 800×600 |
| V16C6448AC | E Ink | 6.4 | 640×480 |
