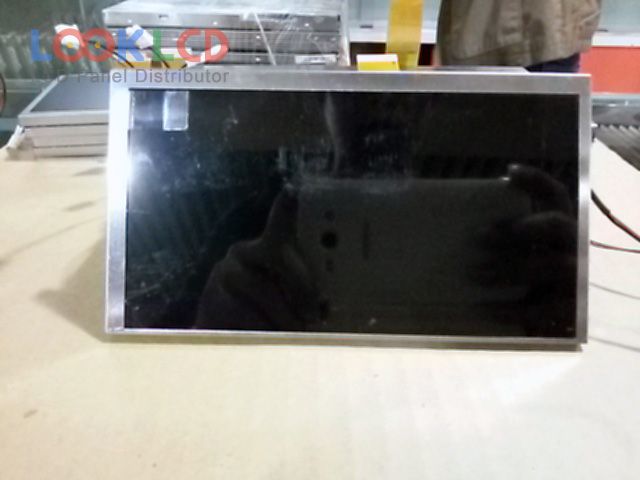

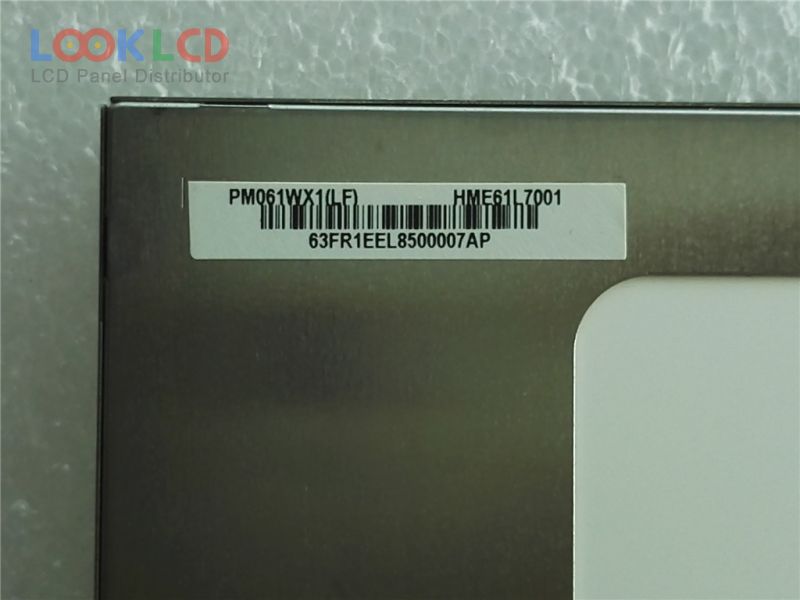

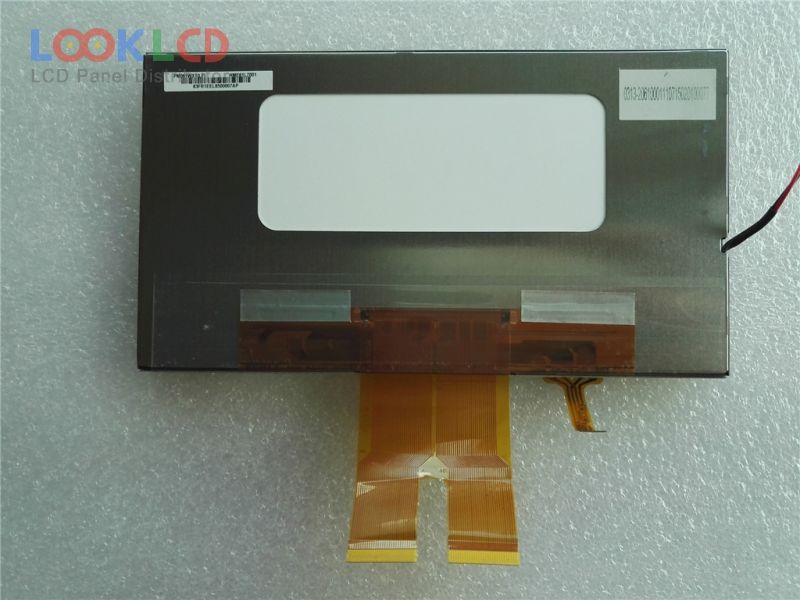

| Nombor Bahagian | PM061WX1 |
| Jenama | E Ink |
| Saiz | 6.1 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | PVI |
| model panel | PM061WX1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 6.1 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 136.2×72 mm |
| garis besar | 149×82.9 mm |
| permukaan | Antiglare |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 75/75/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 3S10PWLEDWithout Driver |
| antara muka isyarat | TTL (1 ch, 6-bit), 60 pins |
| voltan masukan | 3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| rohs: | |
