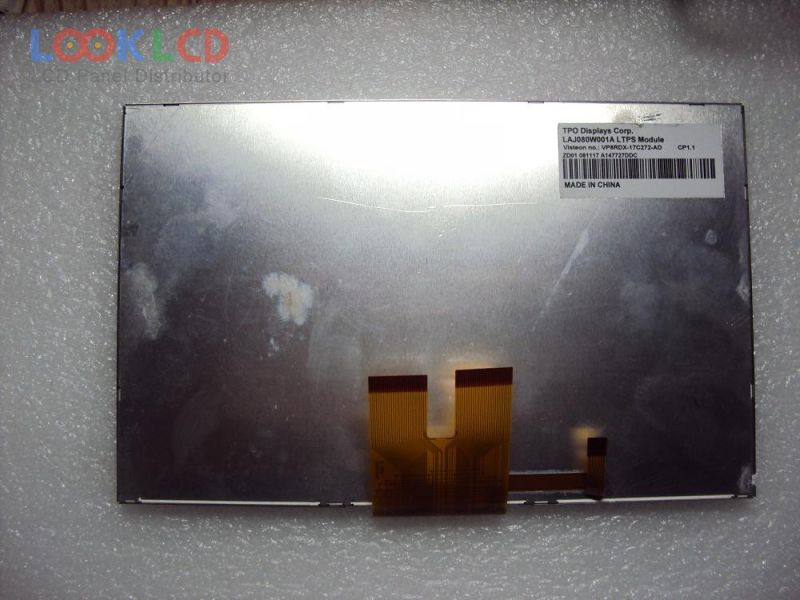

| Nombor Bahagian | LAJ080W001A |
| Jenama | TPO |
| Saiz | 8.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | TPO |
| model panel | LAJ080W001A |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 8.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 174×104.4 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 4.5/7.5 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 60 pins |
| permohonan | CNS |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA080WV3-SD01 | LG Display | 8.0 | 800×480 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| DD070NA-02A | Innolux | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ5AW136T | SHARP | 5.0 | 320×234 |
| PA079DS1T3 | E Ink | 7.9 | 480×234 |
