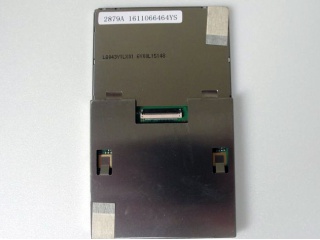

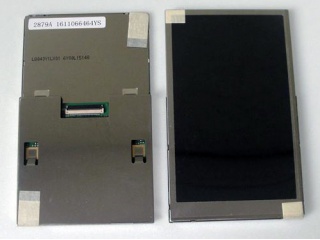

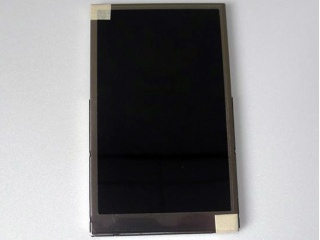

| Nombor Bahagian | LQ043Y1LX01 |
| Jenama | Sharp |
| Saiz | 4.3 |
| Permohonan | Industrial Handheld |
| Resolusi | 480×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | - |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama | Sharp |
| saiz pepenjuru | 4.3 inch |
| format piksel | 480(RGB)×800 [WVGA] 217PPI |
| kawasan aktif | 56.16(H)×93.6(V) mm |
| kecerahan | 315 cd/m² (Typ.) |
| arah pandang | Symmetry |
| sudut pandangan | - |
| warna sokongan | 16.7M |
| berat badan | 61.0g (Typ.) |
| kadar bingkai | 60Hz |
| jenis antara muka | LVDS (1 ch, 8-bit) |
| model | LQ043Y1LX01 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | 64.66(H)×108.48(V) mm |
| nisbah kontras | - |
| masa tindak balas | - |
| mod operasi | ASV, Normally Black, Transmissive |
| sumber cahaya | WLED |
| direka untuk | Industrial Handheld & PDA |
| panel sentuh | Without |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DG28 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01D | SHARP | 4.3 | 480×800 |
