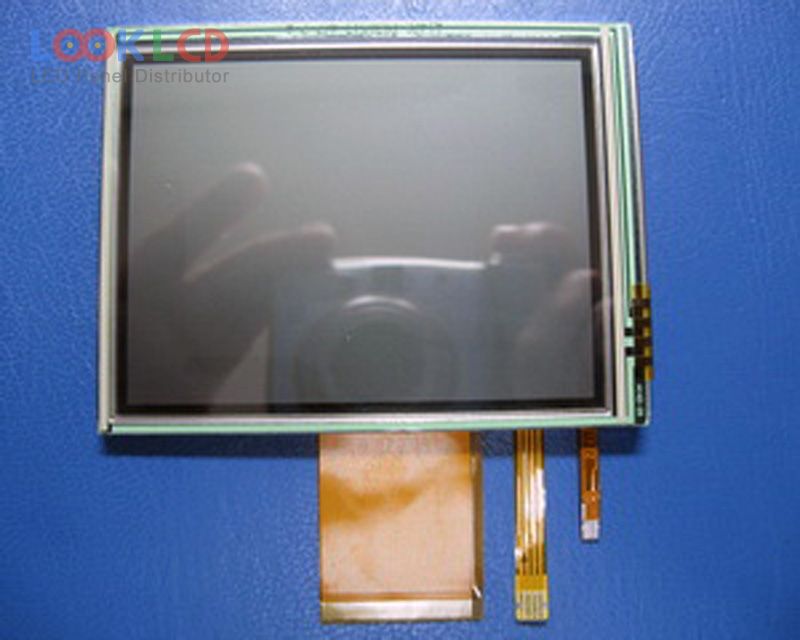

| Nombor Bahagian | LQ035Q7DB04 |
| Jenama | SHARP |
| Saiz | 3.5 |
| Permohonan | |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 50 |
| CR | 70:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ035Q7DB04 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mod paparan | TN, Normally White, Transflective |
| kawasan aktif | 53.64×71.52 mm |
| garis besar | 65×85×4.8 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 50 cd/m² (Typ.) |
| nisbah kontras | 70:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 60/100 (Typ.)(Tr/Td) |
| sudut pandangan | 40/40/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 50 pins |
| voltan masukan | 5.0/3.3/15.0/-10.0V (Typ.)(VSGA/VSHD/VDD/VEE) |
