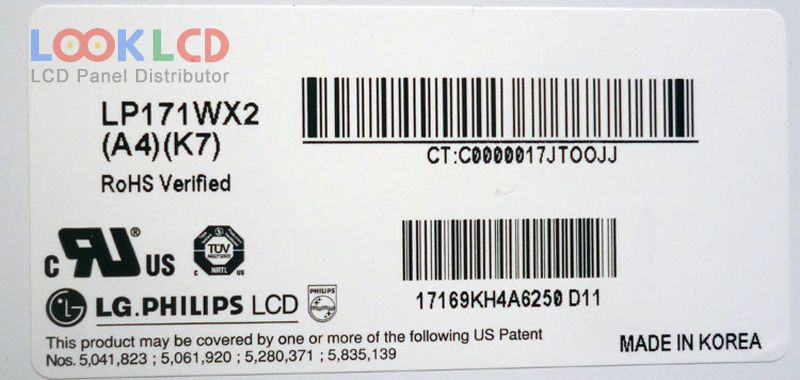

| Nombor Bahagian | LP171WX2-A4K7 |
| Jenama | LG Display |
| Saiz | 17.1 |
| Permohonan | NBPC |
| Resolusi | 1440×900 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | LG.Philips LCD |
| model panel | LP171WX2-A4K7 3 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.1 inch |
| resolusi | 1440(RGB)×900 , WXGA+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 367.2×229.5 mm |
| garis besar | 382.2×244.5×6.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (2H), Antireflection |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 350:1 (Min.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 6/19 (Typ.)(Tr/Td) |
| sudut pandangan | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |

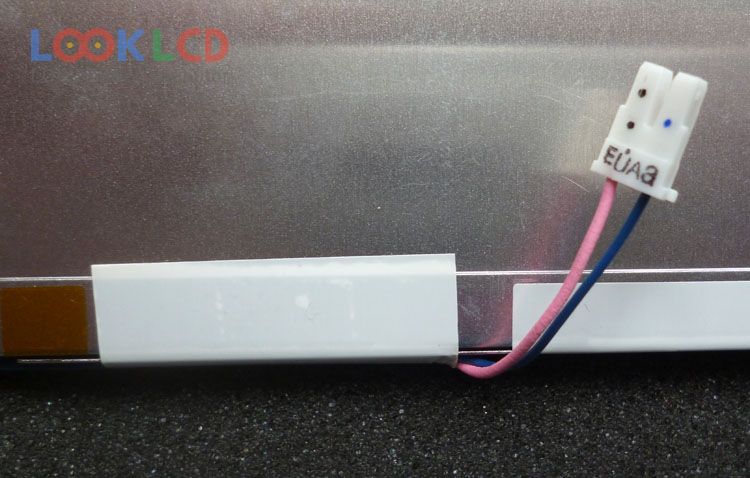

| jenis lampu | 1 pcsCCFLWithout Driver |

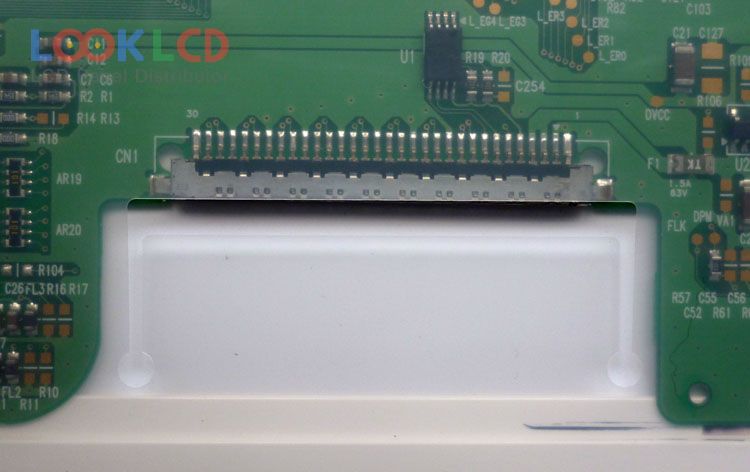

| antara muka isyarat | LVDS (2 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
