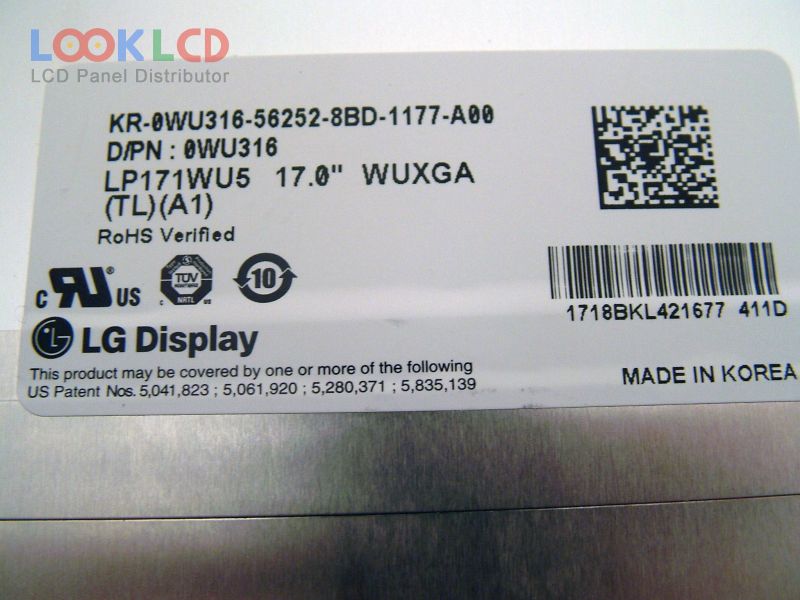

| Nombor Bahagian | LP171WU5-TLA1 |
| Jenama | LG Display |
| Saiz | 17.1 |
| Permohonan | NBPC |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 16.7M |
| Lampu latar | RGB LED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LP171WU5-TLA1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.1 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 367.2×229.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 16.7M (8-bit), CIE1931109% |
| masa tindak balas | |
| sudut pandangan | |
| kekerapan | 60Hz |
| jenis lampu | RGB LED |
| antara muka isyarat | LVDS (2 ch, 6-bit) |
| rohs: | |
| permohonan | NBPC |
