| Nombor Bahagian | LP171WE2-TLA2 |
| Jenama | LG Display |
| Saiz | 17.1 |
| Permohonan | NBPC |
| Resolusi | 1680×1050 |
| Komposisi | LCM |
| Kecerahan | 290 |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | LG.Philips LCD |
| model panel | LP171WE2-TLA2 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 17.1 inch |
| resolusi | 1680(RGB)×1050 , WSXGA+ |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 367.416×229.635 mm |
| garis besar | 382.2×244.5×6.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |

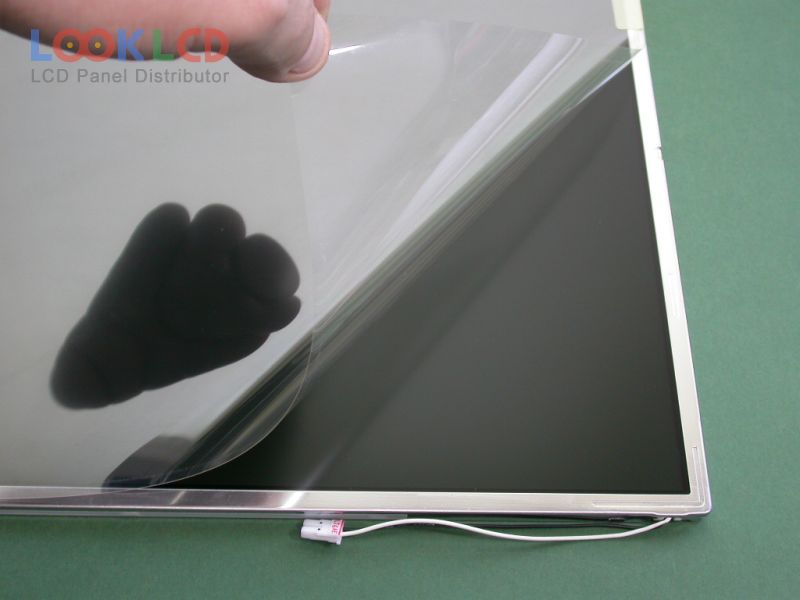

| permukaan | Antiglare (Haze 44%), Hard coating (2H) |
| kecerahan | 290 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 65/65/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (2 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | NBPC |
