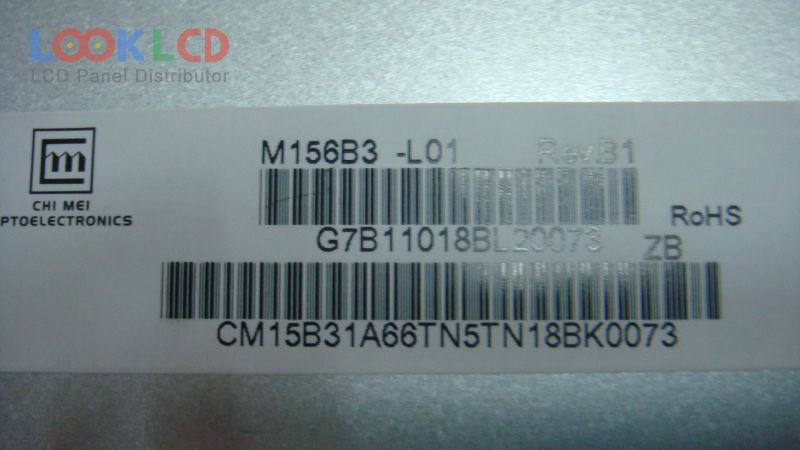

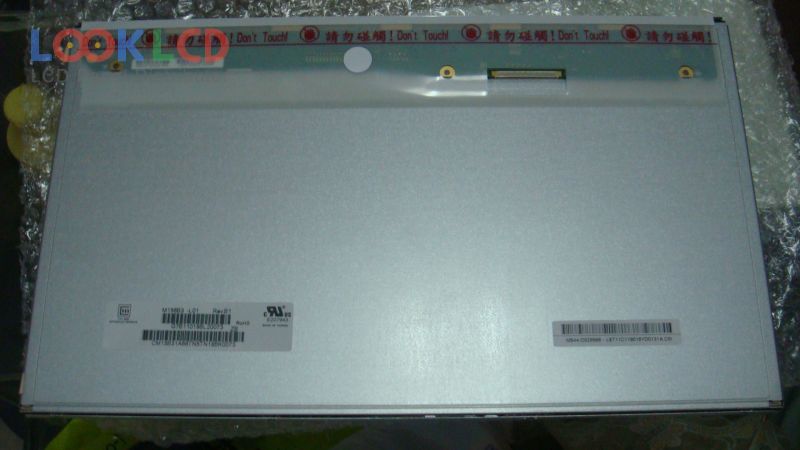

| Nombor Bahagian | M156B3-L01 |
| Jenama | Innolux |
| Saiz | 15.6 |
| Permohonan | DMPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CMO |
| model panel | M156B3-L01 2 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 344.232×193.536 mm |
| garis besar | 363.8×215.9×11.6 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193162% |
| masa tindak balas | 2/6 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 10S9PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 30 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | DMPC |
