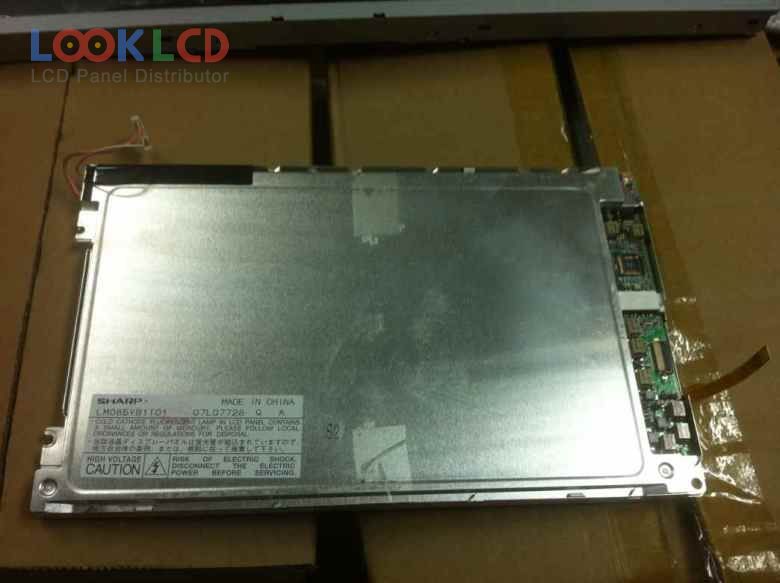

| Nombor Bahagian | LM085YB1T01 |
| Jenama | SHARP |
| Saiz | 8.5 |
| Permohonan | IA |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | |
| Warna | Monochrome |
| Lampu latar | CCFL |
| Antara muka | Parallel Data |
| jenama panel | SHARP |
| model panel | LM085YB1T01 |
| jenis panel | FSTN-LCD , LCM |
| saiz panel | 8.5 inch |
| resolusi | 800×480 , WVGA |
| mod paparan | STN, Black/White mode, Transmissive |
| garis besar | 222.7×134 mm |
| permukaan | |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | |
| warna paparan | Monochrome |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | 1 pcsCCFL |
| antara muka isyarat | Parallel Data (8-bit) |
| rohs: | |
| permohonan | IA |
