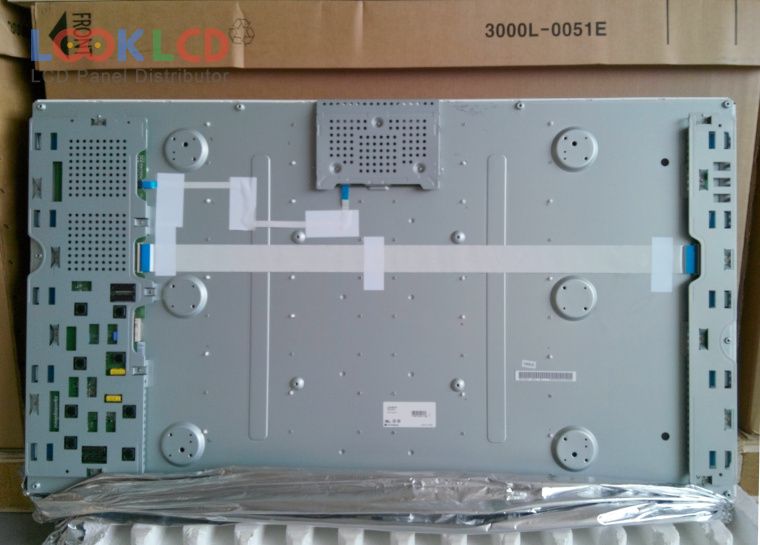

| Nombor Bahagian | LD470DXS-SCA1 |
| Jenama | LG Display |
| Saiz | 47 |
| Permohonan | DID |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 800 |
| CR | 1400:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | LG Display |
| model panel | LD470DXS-SCA1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 47 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mod paparan | S-IPS, Normally Black, Transmissive |
| kawasan aktif | 1039.87×584.64 mm |
| garis besar | 1046.8×591.6×50.5 mm, Videowall Seam 6.9 mm |
| permukaan | Hard coating (3H), Reflection 2.0% (Max.) |
| kecerahan | 800 cd/m² (Typ.) |
| nisbah kontras | 1400:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | 12 (Typ.)(G to G) |
| sudut pandangan | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 30 pins |
| voltan masukan | 12.0V (Typ.) |
| permohonan | DID |
| LC470EUE-SEF1 | LG Display | 47 | 1920×1080 |
| LC470EUN-SDF1 | LG Display | 47 | 1920×1080 |
| LD470DUE-SFR1 | LG Display | 47 | 1920×1080 |
| LD470DUN-TFB1 | LG Display | 47 | 1920×1080 |
| LD470DUN-TFC1 | LG Display | 47 | 1920×1080 |
| LD470DUP-SEH2 | LG Display | 47 | 1920×1080 |
| LD470DXS-SCA1 | LG Display | 47 | 1366×768 |
| LD470DXS-SCB1 | LG Display | 47 | 1366×768 |
| LD470EUD-SDA1 | LG Display | 47 | 1920×1080 |
| V470H1-L03 | Innolux | 47 | 1920×1080 |
| ASI545FB01-0 | Samsung | 55 | 1920×1080 |
| LD470DUN-TFB1 | LG Display | 47 | 1920×1080 |
| LD470DXS-SCA1 | LG Display | 47 | 1366×768 |
| LD550DUN-THB3 | LG Display | 55 | 1920×1080 |
| LD550DUS-SEF1 | LG Display | 55 | 1920×1080 |
| LTI460AN01 | Samsung | 46 | 1366×768 |
| LTI460HN09 | Samsung | 46 | 1920×1080 |
| LTI460HN10 | Samsung | 46 | 1920×1080 |
| LTI550HN11 | Samsung | 55 | 1920×1080 |
| P460HVN01.0 | AUO | 46 | 1920×1080 |
