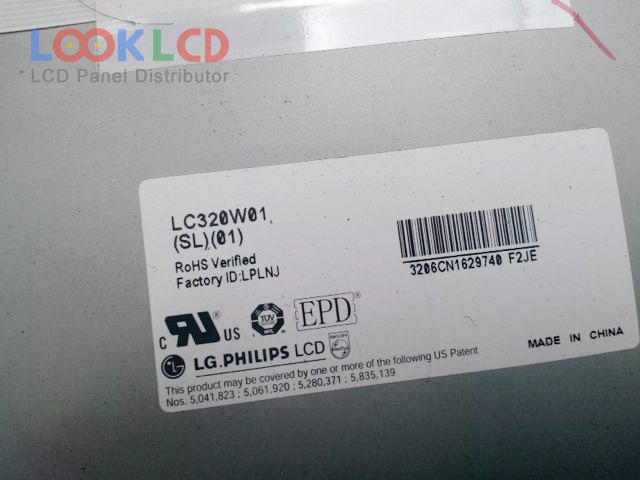

LC320W01-SL01

LC320W01-SL01
LC320W01-SL01 thumb
Jenama
LG Display
Saiz
31.5
Permohonan
LCTV
Resolusi
1366×768
Komposisi
LCM
Kecerahan
500
CR
800:1
Warna
16.7M
Lampu latar
EEFL
Antara muka
LVDS
In Stock
10484
Spesifikasi

Nombor Bahagian LC320W01-SL01
JenamaLG Display
Saiz31.5
PermohonanLCTV
Resolusi1366×768
KomposisiLCM
Kecerahan500
CR800:1
Warna16.7M
Lampu latarEEFL
Antara mukaLVDS
jenama panelLG.Philips LCD
model panelLC320W01-SL01
jenis panel a-Si TFT-LCD , LCM
saiz panel31.5 inch
resolusi1366(RGB)×768 , WXGA
mod paparanS-IPS, Normally Black, Transmissive
kawasan aktif697.685×392.256 mm
garis besar760×450×49 mm
permukaanAntiglare, Hard coating (3H)
kecerahan500 cd/m² (Typ.)
nisbah kontras800:1 (Typ.)
warna paparan16.7M (8-bit), CIE193173%
masa tindak balas8/10 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu18 pcsEEFLEmbedded (Inverter)
antara muka isyaratLVDS (1 ch, 8-bit), 30 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
