LG Display LC320WXN-SAC2 lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD

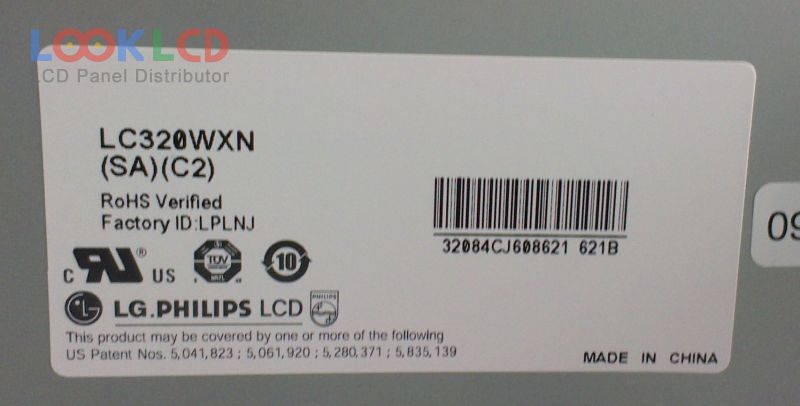

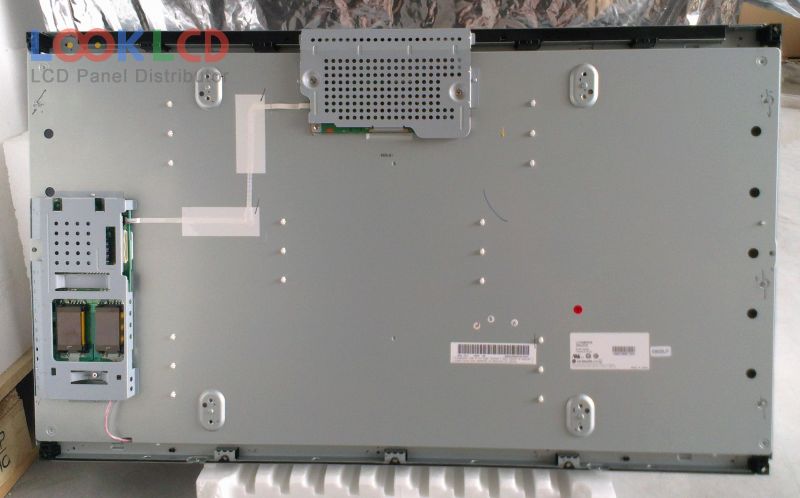

LC320WXN-SAC2

LC320WXN-SAC2
LC320WXN-SAC2
LC320WXN-SAC2 thumb LC320WXN-SAC2 thumb
Jenama
LG Display
Saiz
31.5
Permohonan
LCTV
Resolusi
1366×768
Komposisi
LCM
Kecerahan
500
CR
1100:1
Warna
16.7M
Lampu latar
EEFL
Antara muka
LVDS
In Stock
4440
Spesifikasi

Nombor Bahagian LC320WXN-SAC2
JenamaLG Display
Saiz31.5
PermohonanLCTV
Resolusi1366×768
KomposisiLCM
Kecerahan500
CR1100:1
Warna16.7M
Lampu latarEEFL
Antara mukaLVDS
jenama panelLG Display
model panelLC320WXN-SAC2
jenis panel a-Si TFT-LCD , LCM
saiz panel31.5 inch
resolusi1366(RGB)×768 , WXGA
mod paparanS-IPS, Normally Black, Transmissive
kawasan aktif697.685×392.256 mm
garis besar760×450 mm
permukaanAntiglare (Haze 13%), Hard coating (3H)
kecerahan500 cd/m² (Typ.)
nisbah kontras1100:1 (Typ.)
warna paparan16.7M (8-bit), CIE193172%
masa tindak balas8 (Typ.)(G to G)
sudut pandangan89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampu12 pcsEEFLEmbedded (Inverter)
antara muka isyaratLVDS (1 ch, 8-bit), 30 pins
voltan masukan12.0V (Typ.)
permohonanLCTV
Model Keluarga
LC320WUD-SBA1 LG Display 31.5 1920×1080
LC320WUG-SCA1 LG Display 31.5 1920×1080
LC320WUH-SCM1 LG Display 31.5 1920×1080
LC320WUN-SCA2 LG Display 31.5 1920×1080
LC320WXE-SBV2 LG Display 31.5 1366×768
LC320WXE-SCA1 LG Display 31.5 1366×768
LC320WXN-SAB1 LG Display 31.5 1366×768
LC320WXN-SBA1 LG Display 31.5 1366×768
LC320WXN-SCA1 LG Display 31.5 1366×768
LC320WXN-SCA4 LG Display 31.5 1366×768
