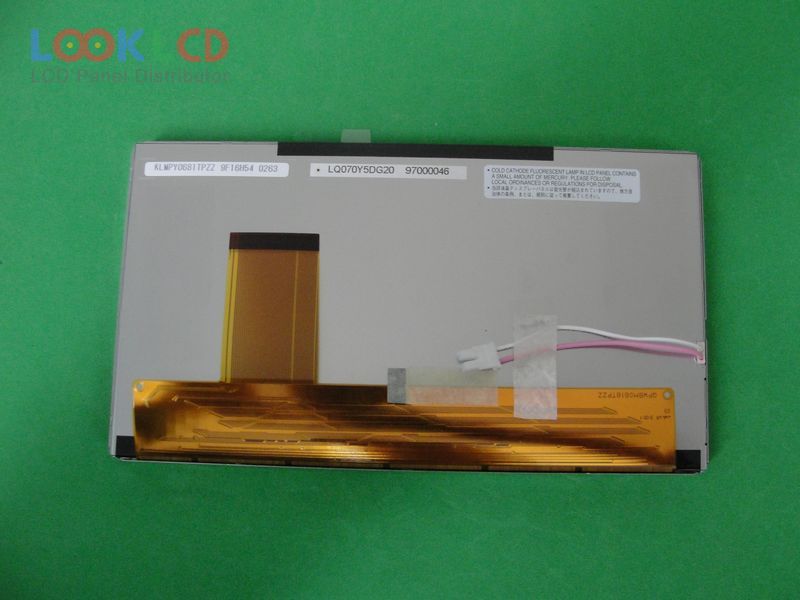

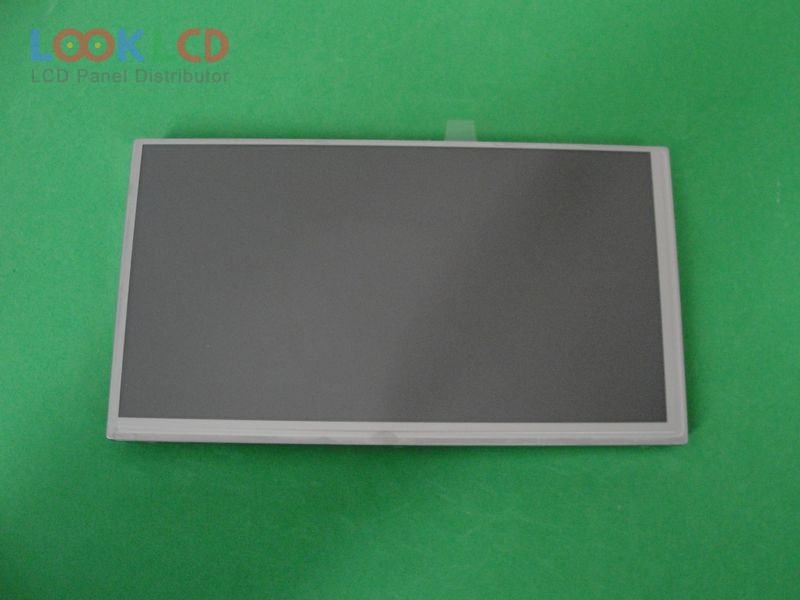

| Nombor Bahagian | LQ070Y5DG20 |
| Jenama | SHARP |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 100:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ070Y5DG20 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 156×82.8 mm |
| garis besar | 167×93×7.5 mm |
| permukaan | Antiglare |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 100:1 (Min.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 30/50 (Typ.)(Tr/Td) |
| sudut pandangan | 65/65/65/60 (Typ.)(CR≥5)(L/R/U/D) |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 50 pins |
| voltan masukan | 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEE) |
| permohonan | CNS |
