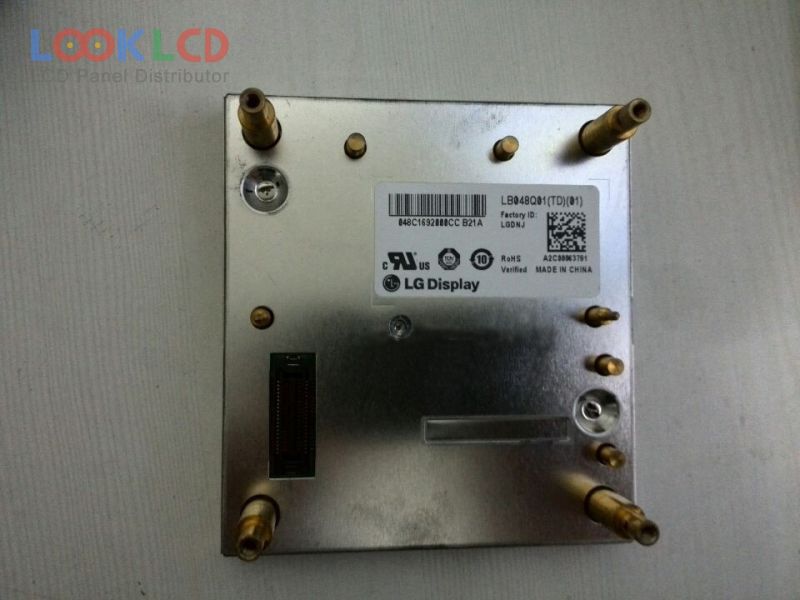

| Nombor Bahagian | LB048Q01-TD01 |
| Jenama | LG Display |
| Saiz | 4.8 |
| Permohonan | CNS |
| Resolusi | 240×257 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 610:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | LG Display |
| model panel | LB048Q01-TD01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.8 inch |
| resolusi | 240(RGB)×257 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 83.016×88.922 mm |
| garis besar | 93.1×100.8×34.4 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 610:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 16/16 (Max.)(Tr/Td) |
| sudut pandangan | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2S3PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | CNS |
