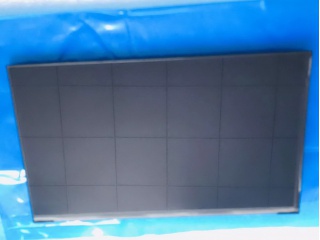

| Nombor Bahagian | LA102WH2-SL01 |
| Jenama | LG Display |
| Saiz | 10.2 |
| Permohonan | Automotive Display |
| Resolusi | 1280×720 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | 10S4P |
| Antara muka | LVDS |
| pengilang | LG Display |
| nama model | LA102WH2-SL01 |
| saiz skrin | 10.2 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1280(RGB)×720 (WXGA) 143PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 225.792 × 127.008 (H×V) |
| garis besar (mm) | 238.62 × 141.5 (H×V×D) |
| kawasan bezel (mm) | 225.75 × 126.874 (H×V) |
| rawatan | Hard coating (3H) |
| kecerahan | 725 cd/m² (Min.) |
| nisbah kontras | 800 : 1 (Min.) (TM) |
| sudut pandangan | 89/89/89/89 (Min.)(CR≥10) |
| tindak balas | 30 (Max.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M |
| lampu latar | 10S4P WLED , 10K hours , No Driver |
| jisim | 303/313g (Typ./Max.) |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 8-bit) , FPC 64 pins |
| bekalan voltan | 1.8/3.3/12.5/18.5/-7.5V (Typ.)(DVDD2/DVDD1/AVDD/VHG/VHL) |
| maks. penilaian | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.16G (31.0 m/s²) |
