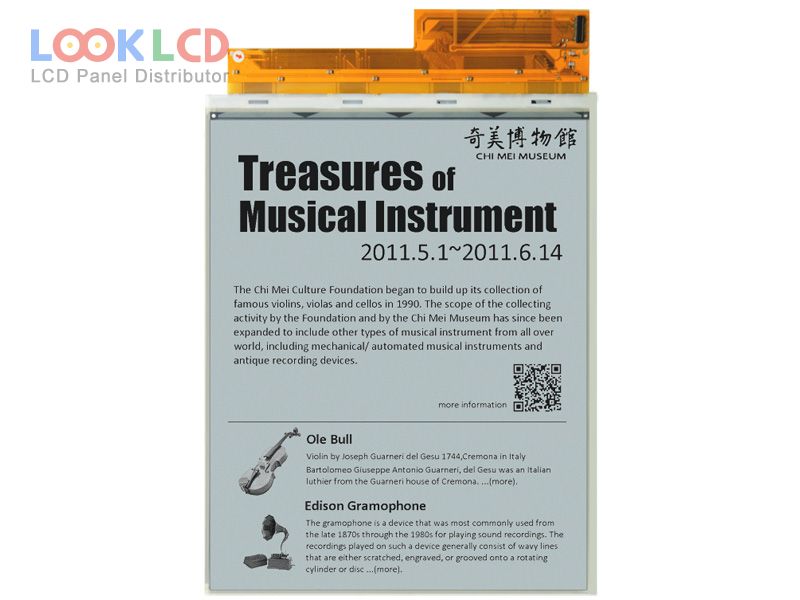

| Nombor Bahagian | EZ102AT011 |
| Jenama | PDI |
| Saiz | 10.2 |
| Permohonan | |
| Resolusi | 1024×1280 |
| Komposisi | EPD |
| Kecerahan | |
| CR | |
| Warna | Monochrome |
| Lampu latar | No B/L |
| Antara muka | Parallel Data |
| jenama panel | PDI |
| model panel | EZ102AT011 |
| jenis panel | EPD , EPD |
| saiz panel | 10.2 inch |
| resolusi | 1024×1280 , SXGA |
| kawasan aktif | 162.56×203.2 mm |
| garis besar | 171.76×218.3×1.4 mm |
| permukaan | Antiglare |
| kecerahan | |
| nisbah kontras | 10:1 (Typ.)(Reflective) |
| warna paparan | Monochrome (1-bit) |
| sudut pandangan | |
| antara muka isyarat | Parallel Data (8-bit), 40 pins |
| voltan masukan | 3.3V (Typ.)(VDD) |
