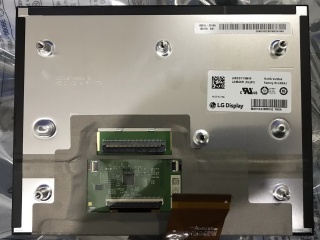

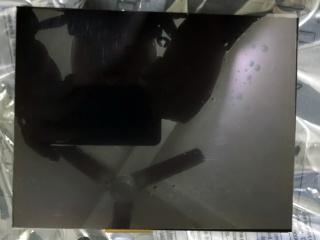

| Nombor Bahagian | LA084X01-SL01 |
| Jenama | LG Display |
| Saiz | 8.4 |
| Permohonan | Automotive Display |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1100:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | LG Display |
| model panel | LA084X01-SL01 |
| saiz panel | 8.4" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1024(RGB)×768, XGA, 152PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 170.496(W)×127.872(H) mm |
| pembukaan bezel | - |
| kecerahan | - |
| nisbah kontras | 1100:1 (Typ.) (TM) |
| sudut pandangan | - |
| mod paparan | IPS, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | 16.7M 60% NTSC |
| jenis lampu | WLED , 10K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | - |
| berat panel | - |
| permohonan | Automotive Display |
| persekitaran | Operating Temp.: -40 ~ 75 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| B084SN01 V0 | AUO | 8.4 | 800×600 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| B084SN02 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V3 | AUO | 8.4 | 800×600 |
| LQ084V1DG21 | SHARP | 8.4 | 640×480 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LQ9D011 | SHARP | 8.4 | 640×480 |
| LQ9D03B | SHARP | 8.4 | 640×480 |
| NL6448BC26-09 | NLT | 8.4 | 640×480 |
