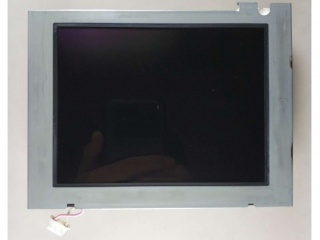

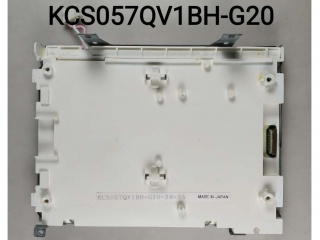

| Nombor Bahagian | KCS057QV1BH-G20 |
| Jenama | Kyocera |
| Saiz | 5.7 |
| Permohonan | Industrial |
| Resolusi | 320×240 |
| Komposisi | LCM, CSTN-LCD |
| Kecerahan | |
| CR | 40:1 |
| Warna | Color |
| Lampu latar | 1 |
| Antara muka | Parallel |
| pengilang | Kyocera |
| nama model | KCS057QV1BH-G20 |
| saiz skrin | 5.7 inch |
| jenis skrin | LCM, CSTN-LCD |
| nombor piksel | 320(RGB)×240 (QVGA) 70PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 115.2 × 86.4 (H×V) |
| garis besar (mm) | - |
| kecerahan | - |
| nisbah kontras | 40 : 1 (Typ.) (TM) |
| sudut pandangan | 50/50/30/30 (Typ.)(CR≥2) |
| tindak balas | 220/110 (Typ.)(Tr/Td) ms |
| pandangan yang baik di | - |
| mod kerja | STN, Normally Black, Transmissive |
| kedalaman warna | Color |
| lampu latar | 1 pcs CCFL , 40K hours , No Driver |
| jisim | - |
| digunakan untuk | Industrial |
| kadar segar semula | - |
| skrin sentuh | Without |
| jenis isyarat | Parallel Data (1ch, 8-bit) , Connector 15 pins |
