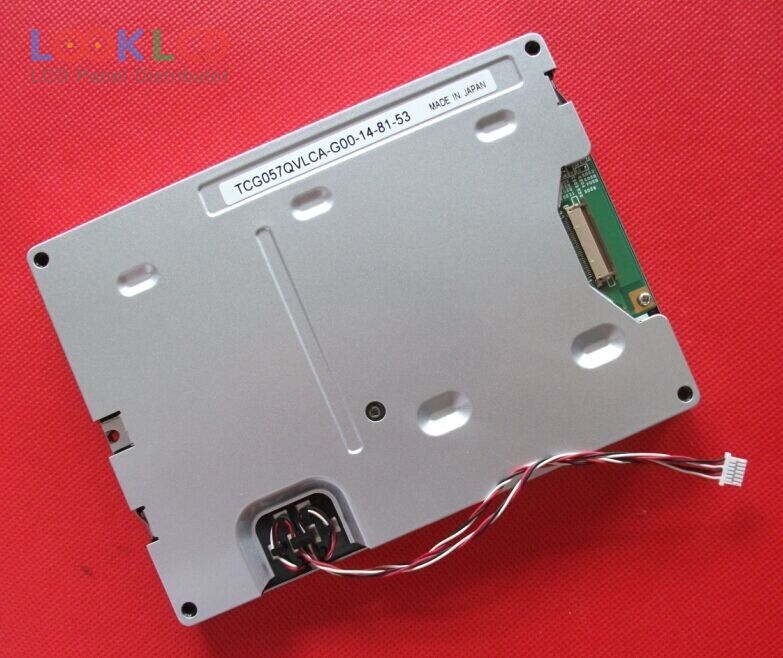

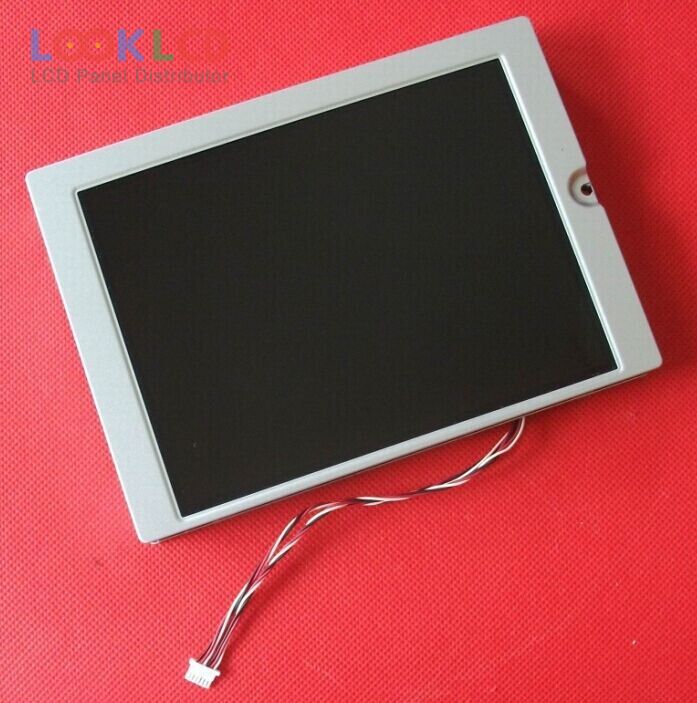

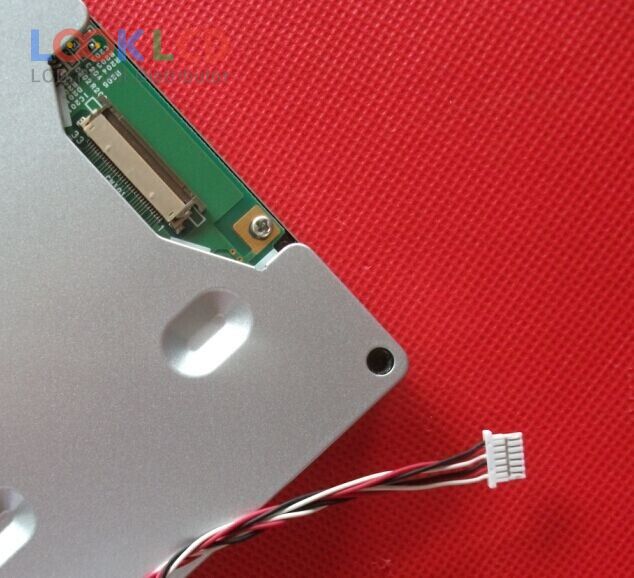

| Nombor Bahagian | TCG057QVLCA-G00 |
| Jenama | Kyocera |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | Kyocera |
| model panel | TCG057QVLCA-G00 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 115.2×86.4 mm |
| garis besar | 144×104.8×13.5 mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/25 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| jenis lampu | 3 stringsWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 33 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
