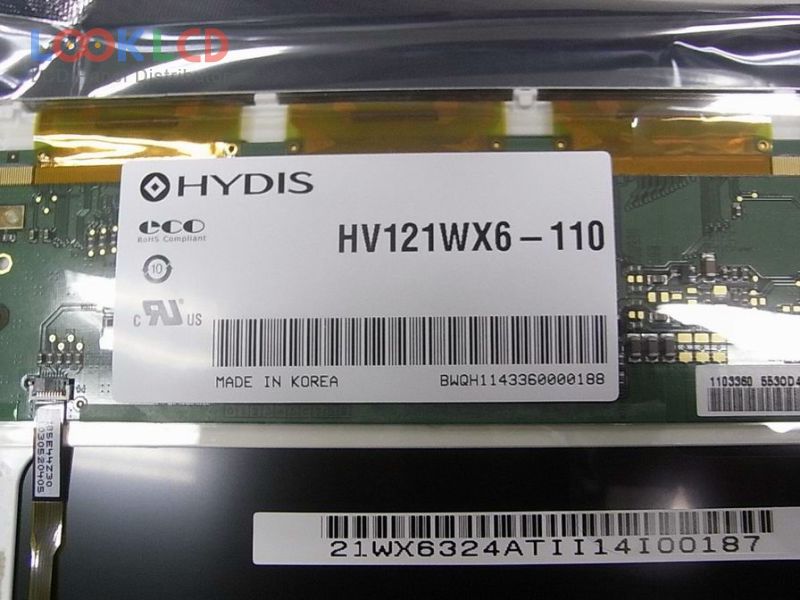

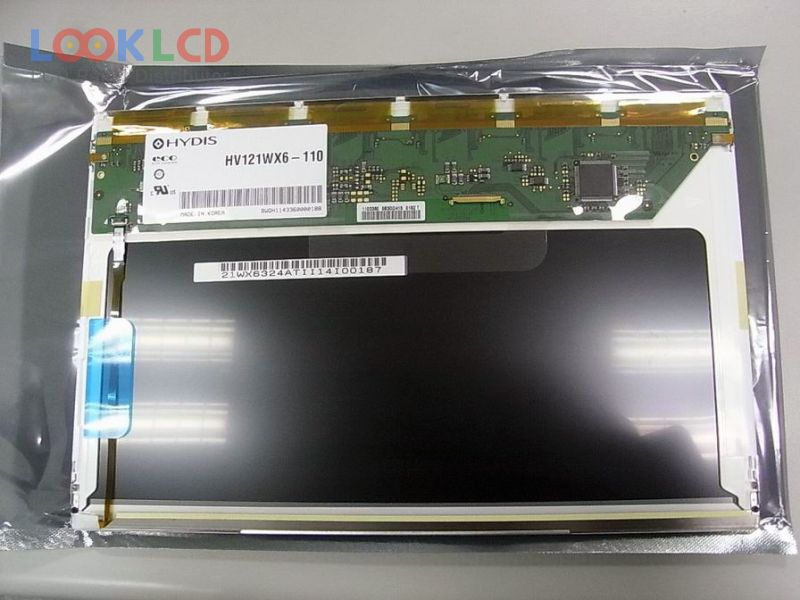

| Nombor Bahagian | HV121WX6-110 |
| Jenama | HYDIS |
| Saiz | 12.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HYDIS |
| model panel | HV121WX6-110 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | AFFS, Normally Black, Transmissive |
| kawasan aktif | 261.12×163.2 mm |
| garis besar | 276.8×180×6.6 mm |
| permukaan | |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 600:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 12S4PWLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP101WX1-SLN2 | LG Display | 10.1 | 1280×800 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LP125WH2-SLT1 | LG Display | 12.5 | 1366×768 |
