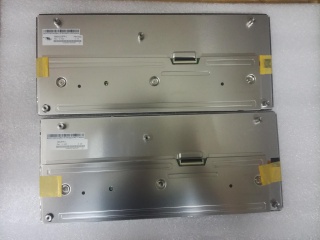

| Nombor Bahagian | HSD123JPW1-A20 |
| Jenama | HannStar |
| Saiz | 12.3 |
| Permohonan | Outdoor High Brightn |
| Resolusi | 1920×720 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 11S4P |
| Antara muka | LVDS |
| jenama panel | HannStar |
| model panel | HSD123JPW1-A20 |
| saiz panel | 12.3" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×720, 167PPI |
| format piksel | RGB Vertical Stripe |
| kawasan paparan | 292.032(W)×109.512(H) mm |
| pembukaan bezel | 294.8(W)×112.1(H) mm |
| saiz garis besar | 308.1(W)×130(H) ×16.6(D) mm |
| permukaan | Antiglare |
| kecerahan | 850 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| mod paparan | IPS Pro, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | 18/17 (Typ.)(Tr/Td) |
| warna paparan | 16.7M 70% NTSC |
| jenis lampu | 11S4P WLED , 30K hours , Without Driver |
| kekerapan | 60Hz |
| skrin sentuh | Without |
| berat panel | 520g (Typ.) |
| permohonan | Outdoor High Brightness Automotive Display |
| antara muka isyarat | LVDS (2 ch, 8-bit) , 50 pins Connector |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
