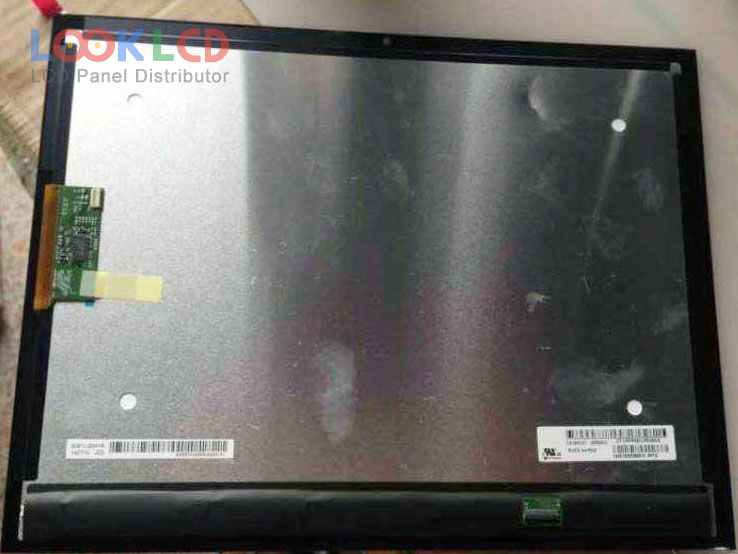

| Nombor Bahagian | LD123UX1-SMA1 |
| Jenama | LG Display |
| Saiz | 12.3 |
| Permohonan | PAD |
| Resolusi | 1600×1200 |
| Komposisi | LCM |
| Kecerahan | 360 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | LG Display |
| model panel | LD123UX1-SMA1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.3 inch |
| resolusi | 1600(RGB)×1200 , UXGA |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 249.6×187.2 mm |
| garis besar | 261×201×2.65 mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 360 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193159% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | MIPI (4 data lanes), 35 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
