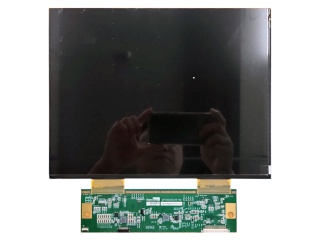

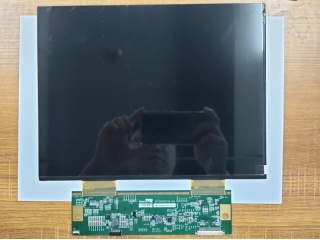

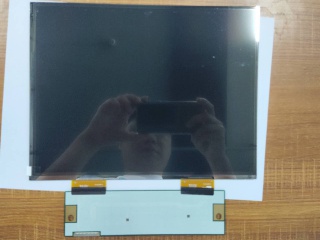

| Nombor Bahagian | HSD121KXN1-A10-0299 |
| Jenama | HannStar |
| Saiz | 12.1 |
| Permohonan | Automotive Display |
| Resolusi | 1024×768 |
| Komposisi | CELL, a-Si TFT-LCD |
| Kecerahan | |
| CR | 900:1 |
| Warna | 262K/16.7M |
| Lampu latar | No |
| Antara muka | LVDS |
| pengilang | HannStar |
| nama model | HSD121KXN1-A10-0299 |
| saiz skrin | 12.1 inch |
| jenis skrin | CELL, a-Si TFT-LCD |
| nombor piksel | 1024(RGB)×768 (XGA) 105PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 245.76 × 184.32 (H×V) |
| garis besar (mm) | 256.18 × 196.9 × 1.27 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Hard coating (3H) |
| kecerahan | 0 cd/m² |
| nisbah kontras | 900 : 1 (Typ.) (TM) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| tindak balas | 30 (Typ.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | IPS Pro, Normally Black, Transmissive |
| ketebalan kaca | 0.50+0.50 mm |
| ketransmisian | - |
| kedalaman warna | 262K/16.7M 70% NTSC |
| lampu latar | No B/L , No Driver |
| jisim | 160/180g (Typ./Max.) |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | Without |
| jenis isyarat | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
| bekalan voltan | 3.3V (Typ.) |
| maks. penilaian | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
