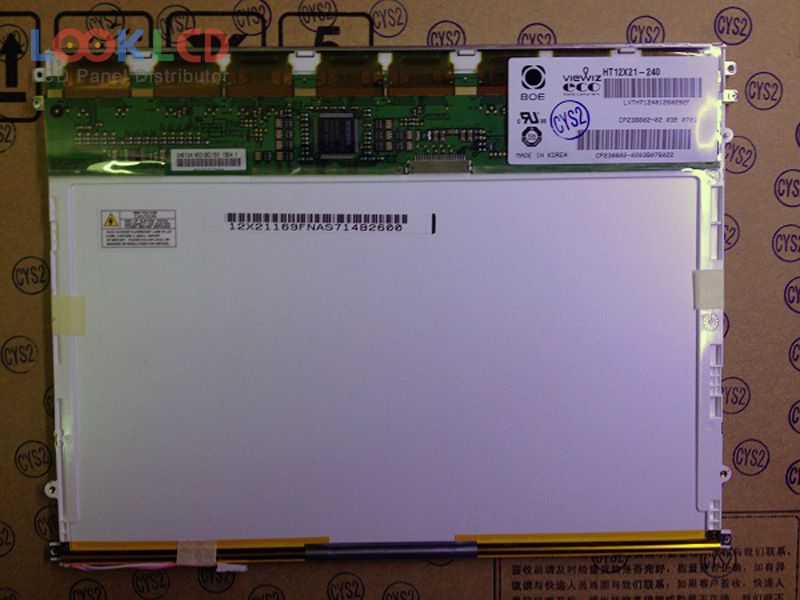

| Nombor Bahagian | HT12X21-240 |
| Jenama | HYDIS |
| Saiz | 12.1 |
| Permohonan | PAD |
| Resolusi | 1024×768 |
| Komposisi | LCM |
| Kecerahan | 180 |
| CR | 450:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | LVDS |
| jenama panel | BOE HYDIS |
| model panel | HT12X21-240 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 12.1 inch |
| resolusi | 1024(RGB)×768 , XGA |
| mod paparan | AFFS, Normally Black, Transmissive |
| kawasan aktif | 245.76×184.32 mm |
| garis besar | 270×199×7 mm |
| permukaan | Glare (Haze 0%), Hard coating (2H) |
| kecerahan | 180 cd/m² (Typ.) |
| nisbah kontras | 450:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193140% |
| masa tindak balas | 40 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6-bit), 20 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
