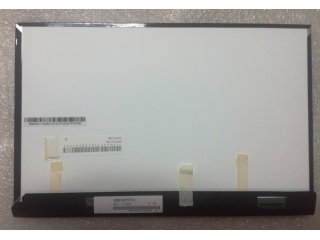

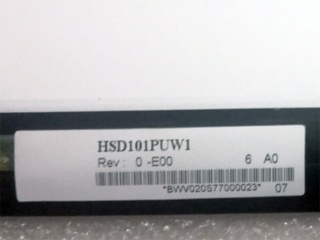

| Nombor Bahagian | HSD101PUW1-E00 |
| Jenama | HannStar |
| Saiz | 10.1 |
| Permohonan | Pad & Tablet |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama | HannStar |
| saiz pepenjuru | 10.1 inch |
| format piksel | 1920(RGB)×1200 [WUXGA] 225PPI |
| kawasan aktif | 216.576(H)×135.36(V) mm |
| kecerahan | - |
| arah pandang | Symmetry |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10) |
| warna sokongan | 16.7M 50% NTSC |
| berat badan | - |
| kadar bingkai | 60Hz |
| jenis antara muka | MIPI (4 data lanes) , 39 pins Connector |
| bekalan kuasa | 3.3V (Typ.) |
| persekitaran | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | HSD101PUW1-E00 |
| menaip | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar malap. | - |
| nisbah kontras | 1000:1 (Typ.) (TM) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| mod operasi | IPS Pro, Normally Black, Transmissive |
| sumber cahaya | WLED , 10K hours |
| direka untuk | Pad & Tablet |
| panel sentuh | Without |
