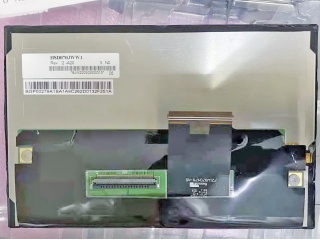

| Nombor Bahagian | HSD070JWW1-A20 |
| Jenama | HannStar |
| Saiz | 7.0 |
| Permohonan | Automotive Display |
| Resolusi | 1280×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HannStar |
| saiz panel | 7.0" |
| resolusi | 1280(RGB)×768, WXGA, 213PPI |
| kawasan paparan | 152.448(W)×91.4688(H) mm |
| kecerahan | - |
| sudut pandangan | - |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M |
| kekerapan | 60Hz |
| berat panel | - |
| antara muka isyarat | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| voltan masukan | 3.3V (Typ.) |
| persekitaran | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| model panel | HSD070JWW1-A20 |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| nisbah kontras | 1000:1 (Min.) (TM) |
| mod paparan | IPS Pro, Normally Black, Transmissive |
| masa tindak balas | 25 (Max.)(Tr+Td) |
| jenis lampu | WLED |
| skrin sentuh | - |
| permohonan | Automotive Display |
