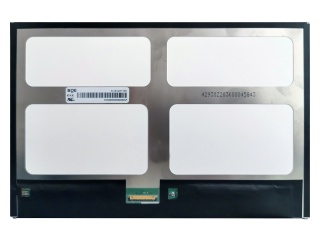

| Nombor Bahagian | GV101WXM-N81 |
| Jenama | BOE |
| Saiz | 10.1 |
| Permohonan | Pad & Tablet Industr |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | BOE |
| saiz panel | 10.1" |
| resolusi | 1280(RGB)×800, WXGA, 149PPI |
| kawasan paparan | 216.96(W)×135.6(H) mm |
| saiz garis besar | 228.3(W)×149.05(H) ×2.6(D) mm |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10) |
| pandangan terbaik pada | Symmetry |
| warna paparan | 16.7M 48% NTSC |
| kekerapan | 60Hz |
| berat badan | 155g (Max.) |
| model panel | GV101WXM-N81 (BOE03F2) |
| jenis panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| pembukaan bezel | - |
| permukaan | Glare (Haze 0%), Hard coating |
| nisbah kontras | 800:1 (Typ.) (TM) |
| mod paparan | ADS, Normally Black, Transmissive |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 15K hours , With LED Driver |
| skrin sentuh | Without |
| permohonan | Pad & Tablet Industrial |
