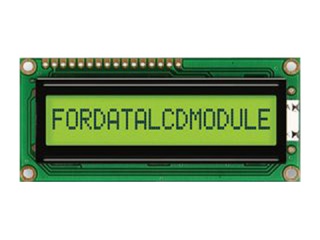

| Nombor Bahagian | FC1601E01-FHYYBW-51LR |
| Jenama | Fordata |
| Saiz | 2.4 |
| Permohonan | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | STN-LCD , LCM |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antara muka | 8-bit |
| jenama | Fordata |
| saiz pepenjuru | 2.4 inch |
| format char | 5×8 dots |
| Saiz huruf | 3.07×6.56 mm |
| kawasan aktif | 59.62(H)×6.56(V) mm |
| kawasan bezel | 64.5(H)×13.8(V) mm |
| kecerahan | - |
| arah pandang | 6 o'clock |
| sudut pandangan | - |
| warna sokongan | Monochrome |
| berat badan | - |
| kadar bingkai | - |
| jenis antara muka | 8-bit parallel , 16 pins Pad |
| bekalan kuasa | 5.0V (Typ.) |
| persekitaran | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | FC1601E01-FHYYBW-51LR |
| menaip | STN-LCD , LCM |
| nada fon | 3.77×6.56 mm |
| garis besar malap. | 80(H)×36(V) ×13.5(D) mm |
| rawatan | - |
| nisbah kontras | 10:1 (Typ.) (TM) |
| masa tindak balas | 150/150 (Typ.)(Tr/Td) |
| mod operasi | STN, Yellow/Green (Positive), Transflective |
| sumber cahaya | YG-LED , 20K hours , W/O Driver |
| direka untuk | Instruments & Meters |
| panel sentuh | Without |
